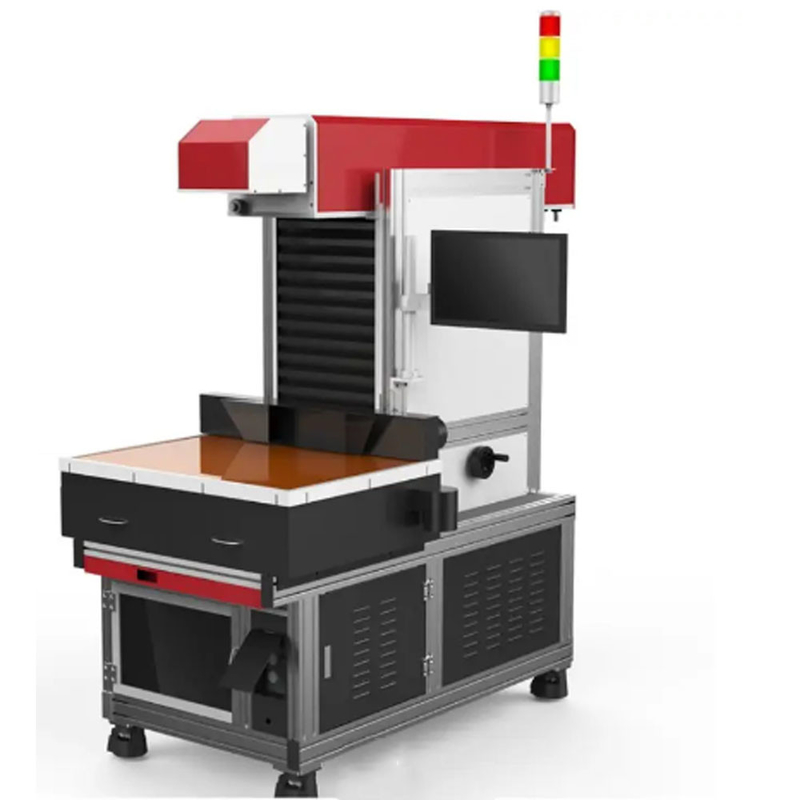

Large Format Co2 Laser Label Marking Rf Machine Galvo Scanner 3D Dynamic
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Water Cooling | Engraving Area | 400mm*400mm |
|---|---|---|---|
| Engraving Speed | 0-1000mm/s | Laser Type | CO2 Laser Tube |
| Minimum Character Size | 0.5mm | Minimum Line Width | 0.1mm |
| Power | 250W | Product Name | CO2 Laser Engraving Machine |
| Repeatability | 0.01mm | Resolution Ratio | 0.025mm |
| Software Compatible | CorelDraw, AutoCAD, Photoshop | Support File Format | PLT, DXF, BMP, JPG, AI, Etc. |
| Working Humidity | 5-95%RH | Working Temperature | 5-45℃ |
| Working Voltage | AC110V/220V+10% |
Product Description
Large Format Co2 Laser Label Marking Rf Machine Galvo Scanner 3D Dynamic adopts RF CO2 Laser from Coherence, USA, 3D dynamic scanner, marking a larger scope, focusing spot is more delicate, widely used in the big marking area application field, high speed and precise marking automation.
Large Format Co2 Laser Label Marking Rf Machine Galvo Scanner 3D Dynamic has compact design, auto-focus, motorized up and down worktable and red-light position. It can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. It adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser opticpatch is driven by two galvanometer motors (XY), and the third axis is driven by pre-scanning gathered system with the liner motor to make a widely adjustment for focus distance. The advantage is high speed, high precision, high power and large marking area.
Products parameter
| Type specification | QA3D 200-1600 | QA-3D250-2200 |
| Wave length of laser | 10.6μm | 10.6μm |
| Laser power | 200W | 250W |
| Laser repetition frequency | 1kHz~100kHz | 1kHz~100kHz |
| Carving scope | 1600mmX 1600mm | 2200mmX 2200mm |
| Carving speed | 10m/s | 12m/s |
| Graphic Format Supported | Al, BMP DWG, DXP PLT JPG | Al, BMP DWG, DXP PLT JPG |
| Repetition precision | ±0.1mm | ±0.1mm |
| Cooling way | Circulation water cooling | Circulation water cooling |
| power supply | AC380V/ AC220V 50HZ/60Hz | AC380V/ AC220V 50HZ/60Hz |
| Overall power consumption | 7KVA | 9KVA |
| Equipment size | 2mx2.11mx2.32m | 3.26mx2.91mx3.01m |
| Equipment weight | Host machine 800kg conveyor 600kg |
Host machine 890KG conveyor 800KG |
Products main parts
Realiable
Imported R.F.Metal Laser tube from the Coherent U.S.Good laser beam quality ,long lifespan stable performance.
Highg accuracy digital scanersystem,make sure the cuttingaccuracy.
Selfdeveloped controlsoftware,powerfulfunction,strong compatibility
Use 3D dynamic focusing scanning system,focus distance can be adjusted automaticly through software control,make sure every corner in the large working area are all in the right focus point.Max working area reach to 600x600mm~800x800mm
Clean Cutting Edge, no
Burning Mark
Comparing with normal CO2 laser cutting machine, the paper cards cut by the SCM2000 model have good finishing clean edge,no burning mask.
CCD Optional
Optional CCD positioning function, more accuracy for printed sheet cutting
applications
Large Format Co2 Laser Label Marking Rf Machine Galvo Scanner 3D Dynamic is suitable for almost all nonmetal materials, including leather, soft fabrics, flocking fabrics, art wallpaper, denim fabrics,
corduroy, velvet and other fabrics, rubber, wood board, bamboo, organic glass, ceramic tile, plastic, marble, jade, crystal etc.
Wildly used in industries of clothing, textile, plate making for clothing, luggage, arts &crafts, bamboo and wood products,
advertising decoration, home, hotel, advertising, exhibition decoration, automotive decoration and other industries.
