20W CO2 Laser Marking System , RF Metal Tube Table Top Laser Etching Machine

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number Smart20
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Plywood case
Delivery Time 6 days
Payment Terms T/T, Western Union, L/C
Supply Ability 5000 Sets/Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 20W Laser Wavelength 10.64um
Precision 0.01mm Cooling Air Cooled
Laser Type RF CO2 Laser Source Service Offer Overseas Service
Certificate CE Warranty 2 Year
High Light

automatic marking machine

,

laser marking machine for plastic

Leave a Message
Product Description



20W CO2 Laser Marking Machine System for Plastic Leather Fabric RF Metal tube



Equipment discription

CO2 laser marking machine adopts America advanced RF metal laser tube and high-speed laser scanning system. Using software control modules,low power consumption,long life marking ,stable and perfect marking quality support . Maintenance-free.

CO2 laser device has large power and higher electronic-optical conversion rate.At present ,this kind of laser device has the largest power.

The extensive equipment performance, competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.



Features

  1. Low cost for consumption
  2. Long lifetime laser up to100000 hours
  3. Maintenance is free
  4. Very little demand for using environment
  5. High quality of laser beam.
  6. Marking scope is large
  7. Power is controlled by software,continuous adjustable.

Specification



Laser medium CO2
Laser tube RF Metal tube
Light wavelength 10.6um
MAX output power 10W/20W/30W
Polarization Linear-vertical 50:1 extinction minimum
Cooling system Air cooled
Diameter of the smallest beam spot 0.1mm
Marking area

70*70mm Standard

110*110mm/175*175mm/230*230mm Optional

Power supply 1 phase, 220V, 50/60Hz, 1KW
Repeatability 0.05 mm
Positioning accuracy 0.05 mm
Marking depth 0.01 ~ 0.3mm(according to the material)
Beam Diameter 10um
Power supply Single phase 220V AC 500VA 50/60Hz
Weight 150kg



Application



Used in the laser marking of Electronic components ,craft gift,leather,enclosure shall and name

plates,rubber,clothing accessories,fabric,food package,beverage package,medicine

package,printing etc.

Widely used in cards,hang tags,garment washing,all kinds of tea drinks,medicines and other packing industry,electronic components wood carvings and other products serial number ,serial number,random number ,bar code,2d barcode and various arbitrary patterns and text.



Sample



20W CO2 Laser Marking System , RF Metal Tube Table Top Laser Etching Machine 0

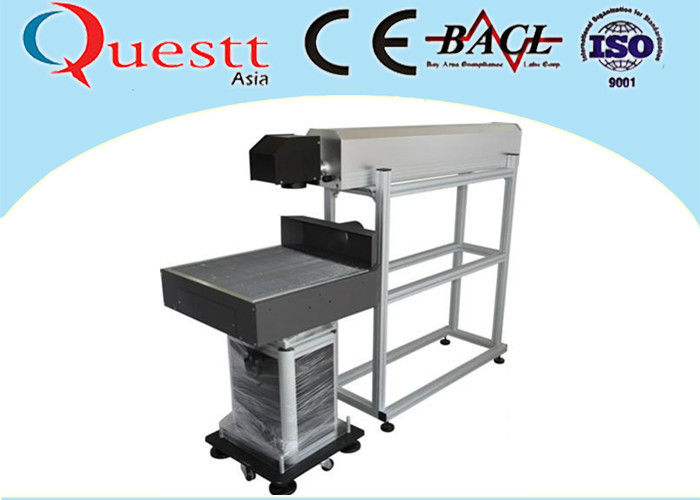

Machine outlook



20W CO2 Laser Marking System , RF Metal Tube Table Top Laser Etching Machine 1



FAQ



1 Q: What is the warranty of the laser machine?

A: The warranty is 2 years.



2 Q: Are you a factory or a trading company?

A: Yes, we are factory over 20 years.



3 Q: What is the service

A: Engineer offer oversea service and we offer online services.



4 Q: Can we customize if we have special request?

A: Yes, we have designing team.



5 Q: What is the payment terms?

A: T/T, LC, Westen Union etc.
