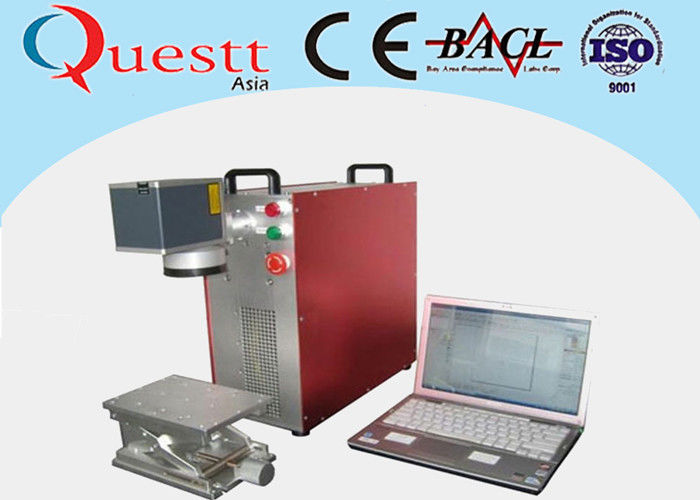

Fiber Laser Marking Machine Maintenance Free

Place of Origin Wuhan,China
Brand Name Questt
Certification CE,ISO,BACL
Model Number Quantum-FL20
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Plywood cases
Delivery Time 5 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2000Sets/Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 10/ 20/ 30W Laser Wavelength 1064nm
Precision 0.01mm Frequency 20-100KHZ
Cooling Air-cooled Max Markng Speed 7000mm/s
High Light

fiber laser etching machine

,

desktop laser marking machine

Leave a Message
Product Description

Red Desktop Laser marking machine for all material CE 10 20 30W Laser Power



Equipment discription


QUESTT Quantum- FL20 Desktop Fiber Laser Marking machine price adopts fiber laser and speedy Gavol scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance.

It is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running. The proprietary control software may compatible software output of AutoCAD, CorelDraw, Photoshop, etc.

QUESTT Quantum FL-20 Desktop Fiber Laser Marking machine System

It can support file formats like PLT, PCX, DXP, BMPand so on. It may use TIF fonts directly. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production.



Features


1 High quality laser beam
2 Low running cost
3 High precision
4 Easy to install and operate
5 Excellent stability
6 Maintenance free
7 Completely sealed optical system

Components


10W/20W/30W fiber laser source
Visible red beam pilot laser
Digital Laser POWER SUPPLY
High speed Galvo Head and F-theta Lens
USB Control CARD
Special marking software
Computer(LCD)



Specification

Fiber Laser Marking Machine.pdf



Product Specifications
Product Quantum-FL20
Purpose Marking / engraving
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber LASER
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm (standard), 110x110mm, 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis 2 Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 850*350*550mm(0.22M3)
Weight (kg) 60kg
Guarantee: (see Ts&Cs on support page)
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED & CO2(Except Smart Series)
  20,000hrs/18 months - Smart Series
  10,000hrs/12 months - Diode Pumped
  100,000hrs/2 years - Fiber LASER




Application


The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.



Special Function


It can mark different color with different parameter such as red, green, blue and etc.
The parameter setting and the focus distance setting can be obtain the color marking.
But the color will be changed according to the different environment temperature and humanity etc.



Sample



Fiber Laser Marking Machine Maintenance Free 0

Accessory scanning



Fiber Laser Marking Machine Maintenance Free 1
