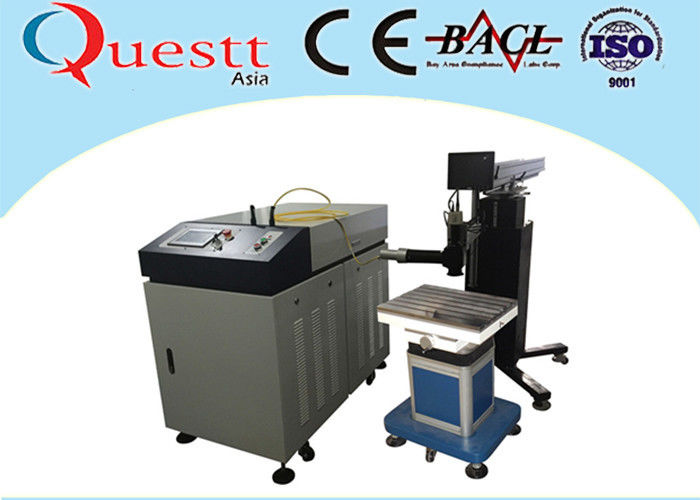

1064nm Fiber Laser Welding Machine Micro - Computer Control For Silver / Titanium
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Fiber Transmit | Laser Source | YAG |
|---|---|---|---|
| Wavelength | 1064nm | Laser Power | 300W |
| Welding Wire | 0.1-2mm | Pulse Width | 0.1-20ms |
| Welding Frenquency | 1-50HZ | Power Supply | 220V 50HZ |
| Control | Micro-computer | GW | 200kgs |
| High Light | laser beam welding machine,laser welding equipment,Fiber Laser Welding Machine Microcomputer Control |
||
Product Description
Fiber laser welding machine system 200W soldering for Titanium Jewelry
Description
QUESTT QA-200FT is a laser welding sysetm through the fiber optic cable transmission. After the fiber optical transmission, the laser beam quality will be much better and suitable for precise laser welding.
When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precision parts.
Specification
| Model | QA-100FT | QA-200FT | QA-300FT | QA-400FT | QA-500FT | QA-600FT |
| output power | 100W | 200W | 300W | 400W | 500W | 600W |
| laser wavelength | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
| Max Pulse Power | 60J | 70J | 80J | 100J | 120J | 150J |
| Pulse Width | 0.1-20ms | 0.1-20ms | 0.1-20ms | 0.1-20ms | 0.1-20ms | 0.1-20ms |
| Max welding Depth | 1mm SS | 1.5mm SS | 2mm SS | 2.5mm SS | 3mm SS | 3mm SS |
| Pulse Frequency | 0-20HZ | 0-300HZ | 0-300HZ | 0-300HZ | 0-300HZ | 0-300HZ |
| Consumption | 4KW | 6KW | 12KW | 12KW | 16KW | 18KW |
| Power Input | 220V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Cooling | Air | Air/water | Water | Water | Water | Water |
| Fiber Model | GI/SI | GI/SI | GI/SI | GI/SI | GI/SI | GI/SI |
Application
Suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloys, has been widely used in aerospace equipment, shipbuilding, instrumentation, electrical and mechanical products, automobile manufacturing and other industries
Technical Support
We are pleased to offer 24hr support for all of our products. We can offer driver and software download and support, spare parts, tutorials, service, etc. We're basically here to do as much as we can to help get you up and running as quickly as possible.
Welding sample
FAQ
1.Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, so please don’t worry, you will receive the machines in good condition.
3.Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine.
Machine outlook
FAQ
1 Q: What is the warranty of the laser weldingmachine?
A: The warranty is 1 year.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
