Robot200 Jewelry Laser Welding Machine Reliable / Durable For Golf Industry
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | YAG Laser Source | Laser Power | 200W |
|---|---|---|---|
| Wavelength | 1.064um | Pulse Width | 0.1-20 Ms |
| Welding Wire | 0.1-2 Mm | GW | 200kgs |
| High Light | Portable Laser Welding Machine,Gold Laser Welding Machine |
||
Product Description
Jewelry Soldering Machine 200W with Water Chiller YAG laser source
Introduction
This system is especially suitable in the jewelry, mould and golf industry.
It can process welding and repairing for all the metal materials. There is no special block needed during the processing. The pieces to be processed can be hold by hand, and to be welded under the microscope conveniently.
It is more reliable, more durable, more convenient and effective. Besides, laser spot welding can be used to group weld tiny components, for example, weld motor electrode and optical components in greenhouse or special condition.
The Observing system is equipped with special-purpose microscope observing system with cross cursor. It has high speed electron flitting device to protect the operator's eyes from being hurt.
Advantages
1 Speedy
2 high efficiency
3 big depth
4 small deformation
5 small heat-affected zone
6 high welding quality
7 non-pollution
8 Humanized design
Specification
Jewelry Mold laser welding machines .pdf
| type | Robot200J | |
| Output laser power | 200W | |
| Wave length | 1064nm | |
| Laser power supply | 4KW | |
| Laser welding minimum melt pool | 0.1mm | |
| Laser pulse frequency | ≤50Hz | |
| Laser pules width | ≤20ms | |
| Port adjusting scope | 0.1～3.0mm | |
| Port size | 0.2～3.0mm | |
| Protective gas | One way | |
| Power demand | 220V one-phase/50Hz/20A | |
| Figure size of system | Laser welder | 1160X640X1410mm |
| Water chiller | 740X600X1090mm | |
Applications
It can be used to process the spot welding and seam welding for many small scale metal components, such as Titanium, Nickel, Aluminum, Stainless steel, Gold, Argentine, Copper, Platinum.
It can process the spot welding on the contactor of the relay, the steel strip of the computer floppy disk driver, the pins of the printer, and also process the seam welding of the metal tube and belt etc.
Jewelry Soldering Samples:

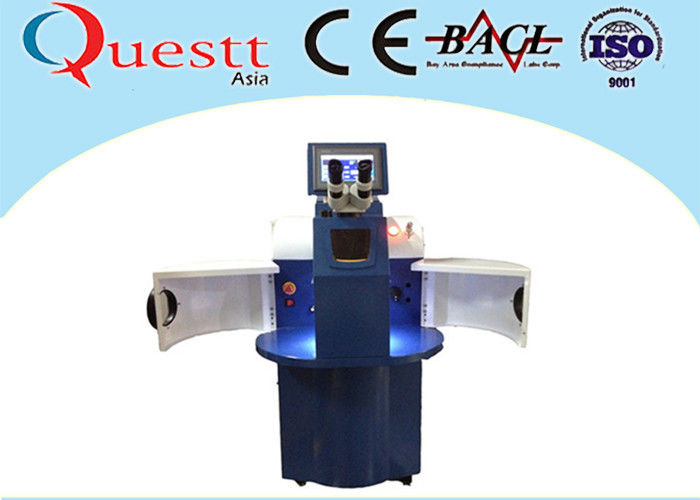

Machine outlook
FAQ:
1 Q: What is the warranty of the Jewellery laser welder?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
