Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage

China Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage supplier
Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage supplier Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage supplier Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage supplier

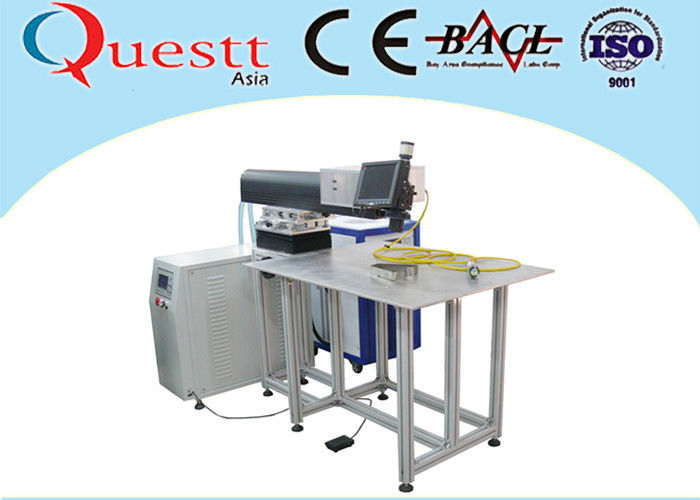

Large Image :  Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage

Product Details:

Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: Signage-400H

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Exporting standard wooden cases
Delivery Time: 12 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3200 sets / year
Contact Now
Detailed Product Description
Laser Power: 400W Laser Source: NG: YAG
Service: Oversea Service Available Application: Channel Letter Welding
Controller: Touch Screen With CCD Power Supply: 380V 3 Phase

Channel letter Hand held fiber laser soldering machine 400W advertizing signage

Description



Signage-400H Channel letter Hand held fiber laser soldering machine is a hand Torch laser welding machine passes high-energy laser light beam through soft fiber cable to one small laser head , so that the laser can works on some parts hardly to reach. Hand-held laser head is very flexible to use and makes multi-parts welding available.



With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness , corrosion proof, rainproof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks.



We have two way for welding, one is through the normal model, NG:YAG laser, the other one is a hand held fiber laser welding head, you can just hold the fiber laser head in your hand, and weld anywhere you like, it is much more convinient to weld large workpieces which can not move on the table or hard to move. See below photo of the hand held fiber laser welding head.

Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage



Features



1. Fast welding process; Exclusive or customized fixing jig device; Fast focusing and positioning without a CCD or microscope.



2. Manual laser trigger and foot-paddle laser trigger per user's requirement.



3. With the help of ultrafine positioning rod, you don't need to adjust light spot at smallest corner.



4. Red dot fast positioning with CCD monitor for detail observation



5. Manual laser trigger and foot-paddle laser trigger per user's requirement.



Specification

Channel Letter Hand Held Laser Soldering Machine.pdf



Model Signage-400H
Laser working substance Nd3+:YAG crystal gilded resonance cavity
Rated power 400W
Max. single-pulse energy 110J
Max. peak power 12KW
Laser wave length 1064nm
Focused facula diameter ф0.10-3.0mm Adjustable
Pulse width 0.2-20msadjustable
Pulse frequency 1-30HZ Adjustable
Pulse depth ≤6mm
Working table scale 750*1000mm
3-axis itinerary X=700mmY=150mmZ=200mm
Controlling system Single-chip micro processor
Observing system Color CCD
Cooling system Water chiller
Packing Size

1530*810*1100mm+960*760*1150mm

+960*670*950mm=2.8CBM

Gross weight 340KG





Prospect of laser technology in Ads industry



 Regular combination and fixing of metal letters are done via glue, rivets or soldering, but all of them have big defects. Metal letters combined by glue always get loose with time goes by, especially at outdoors. Fixing by rivets sounds good, but not good-looking. Soldering is never a green way of fixing metal letters because of the poisoning gas produced when processing. From any aspect, laser welding is the best solution and the greenest.





Configuration



No: Item Description Quantity Origin Remark
1 YAG Cavity Golden 1 set UK Morgan
2 Thermostatic water cooling machine Hanli, China 1 set Shenzhen

less noise and

low power consumption

3 Optical lens Wavelength 1 set Singapore focal length 150mm
4 Laser power QAPLASER 1 set Wuhan
5 CCD Observation system 1 set Shenzhen Standard configuration
6 YAG bar BOET 1 set Beijing
7 Fiber cable   1 set Germany







Application



Welding for various metal channel letters, metal letter back-kit, customized metal signage, and oversized exterior billboards,



This Hand held fiber laser welding machine is mainly design for advertising industry, cooperate with laser cutting and CNC bending machine, we can make all kinds of LED channel letters to finish a nice Ads Board.  As attached Photo

Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage







Machine outlook



Channel Letter Hand Held Laser Soldering Machine 400W For Advertising Signage
