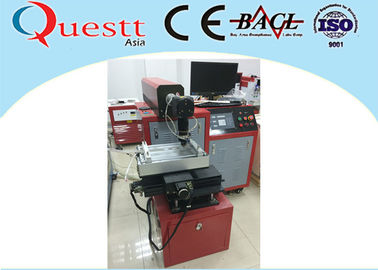

300W Laser Cutting Equipment For Electrical Parts , Metal Cutting Machine For Jewelry

Place of Origin China
Brand Name Questt
Certification ISO , CE
Model Number QA-PC300D
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 5 - 22 days
Payment Terms T/T, Western Union, L/C
Supply Ability 3970 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutting Thickness 0-3mm Application Precision Workpiece
Service Overseas Service Available Warranty 1 Year
Laser YAG Or Fiber Power 300/500W
High Light

yag laser cutting machine

,

industrial laser cutting machine

Leave a Message
Product Description

High Precision laser cutting machine products 300W fast speed CNC laser cutter



Overview



QA-PC300C Precision laser cutting machine is a precision type laser cutter. The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.



Precision laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel,carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CN programe,can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convinient maintenance.



Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.





Parameter datas

Products

QA-PC300D

Precision CNC laser cutting machine

Laser Nd:YAG pulse laser
Laser power 300W
Cutting format

100*100mm,

200*200mm

300*300mm

600*600mm

Cutting accuracy 0.01-0.05mm

Cooling system



Water of cooling
Use It is used to cut metal
Maintenance cycle 3-6 months
Accessories Laser ,laser power supply, laser position system, optics system, cooling system, computer control system, cutting worktable, CCD visual observation system, gas system
Technology parameters

Laser rated power: 300W

Laser wave length: 1064μm

Laser work material: Nd: YAG crystal

Pulse frequency: 1-150Hz

Cutting format: 300×300mm

Z axis travel: 50mm

Top load of worktable: 100kg

Work current: 100-450A

Pulse width: 0.1-3ms

Beam divergence angle: ≤5mrad

Power instability: ≤±5%

Accuracy: 0.05mm

Location speed: 1m / min

Cutting speed: 1m/min(1mm stainless steel plate)

Top cutting speed: 2m/min(1mm)

Repeat location precision: ±0.1mm

Cutting thickness: stainless≤3mm carbon steel plate≤4.0mm

copper≤0.5mm

aluminum≤0.8mm

Continuous work time: 24h

Minimum cutting width ≤0.1mm(material thickness 1mm)

Cutting worktable: servo motor table

The whole power cost: 12KW

Focusing mirror configuration: 3 inch,

Power supply: three-phase 380V/50Hz/30A

Applicable field

It is used widly on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet,textile machinery parts,kithen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electical kettle, medical microelectronics, hardware, tools,etc.

Suitable material: stainless steel,carbon steel,alloy steel,spring steel,copperplate,aluminum plate,gold,silver,titanium, etc metal plates and pipes.

Environment require

Three-phase alternating current: 380±10%,50HZ

Environment temperature: -10℃-40℃

Ralative humidity: ≤80%

Oile mist: not more than 15mg/m3



Cutting parameter


  300W 500W 650W
Carbon steel 0-3mm 0-6mm 0-8mm
Stainless steel 0-2mm 0-3mm 0-4mm
Aluminum alloy 0-1mm 0-2mm 0-3mm





Samples

300W Laser Cutting Equipment For Electrical Parts , Metal Cutting Machine For Jewelry 0

FAQ



1 Q: What is the warranty of the laser cutting machine?
A: The warranty is 1 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.

3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
