High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera

China High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera supplier
High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera supplier High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera supplier

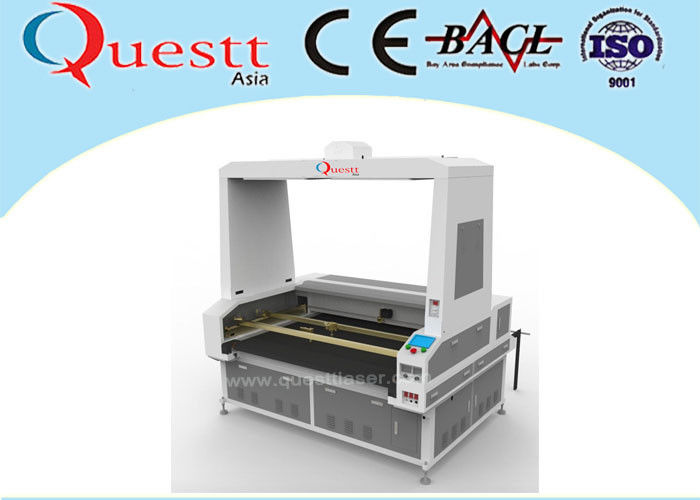

Large Image :  High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera

Product Details:

Place of Origin: China
Brand Name: Questt
Certification: CE ISO
Model Number: QA80-1610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exporting Standard Plywood Box
Delivery Time: 7 - 28 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3100 sets / year
Contact Now
Detailed Product Description
Laser Type: CO2 Laser Cutting Size: 1.6x1m
Cooling System: Water Cooling Warranty: 1 Year And Permanent Service
Service: Offer Oversea Service Control: CNC Panel
Material: Nonmetals Customize: Yes



CO2 Laser Engraving and Cutting Machine Double Head with Vision Camera High Efficiency



Introduction



QA80-1610 Double head CO2 wood engraving machine is equipped with two laser tube and lase head, so the working efficienty is double than signle head. It also equipped with a carema for vision positioning.

It is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the machine, and the lower part can configure suitable platform according to customers’ needs.

The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving the heavy material. Meanwhile, it solves the problem that platform has a limited bearing ability.

Both parts can be up and down so that engraving objects with greatly thickness-changing is much easier to process





Features



1. Spare parts: Servo motor,reduction gear and guide rail,etc are imported with original packaging.
2. Accuracy: Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly.
3. Blade surface and shell side surface at the same height,it's more convenient for up-down loading
4. Laser cover with the laser head outside. Convenient for the operator to monitor the process at real-time

5. large format laser cutting cut smooth fine, to meet customer demand for cutting and engraving industry .

6. the optical path stable design , industrial water-cooled machine when equipped to ensure large format cutting, countertop laser power output for each position is consistent , fast and efficient, stable quality .

7. the machine used in gifts , packaging, printing , stone carving, wood furniture, toys , electronics, model , paper products, construction and decoration industries .

8. Laser work, support Coreldraw, AutoCAD





Specification



Laser power 80W
Laser type CO2 glass tube
Cutting area 1600mm x 1000 mm
Max. Object size 1300mm(no limited)
Max. cutting thickness Acrylic 0-30mm
Orientation precision 0.05mm
Repeating orientation precision 0.02mm
Max. movement speed 15M/MIN
Cooling system Water cooling
Power 220V/50HZ/(35A/40A)
Average power consumption 12.5KW
Overall dimension 2000x1400x1700





Materials



Items Engraving Cutting

Fabric Denim , leather , polyester , cotton , nylon , pongee ,

suede , jeans ,satin , corduroy , chiffon , tulle , fleece

yes yes
Wood Plywood , bamboo , veneer , mdf , polymeric materials yes yes

Plastic PP , plastic , ABS plastic , PVC , pipe , polyester ,

sheet , insulation layer

yes yes
Organic Acrylic , rubber , resin , epoxy yes yes
Paper Packaging materials , tin foil , card , cardboard , chipboard yes yes
Composite Double color plate organic board yes yes

Stone Ceramic , tile , marble ,granite , slate , gravestone ,

porcelain , tombstone , ceramic plate

yes no

Other Nonmetals process materials , coating materials ,

plating materials , spraying materials

yes

no





Applications



Applicable to acrylic, wood, double color plates, paper, leather and other non-metallic materials.

Applicable to advertising, art craftworks, model, furniture and other processing industries.



Samples



High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera



Configuration

High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera

Machine overlook

High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera

High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera



High Efficiency CO2 Laser Engraving And Cutting Machine Double Head With Vision Camera
