Portable Handheld Laser Paint Rust Removal Pulse Cleaning Machine 100W 200W
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Fiber Laser | Laser Power | 100w |
|---|---|---|---|
| Wave Length | 1064 Nm | Sevice | Online Service |
| Cable Length | 5m | Type | Suitcase Type |
| Warranty | 2 Years | ||
| High Light | Rust Removal Pulse Cleaning Machine,100W Pulse Cleaning Machine |
||
Product Description
100W 200W Portable Handheld Laser Paint Rust Removal Remover Pulse Cleaner Cleaning Machines
Introduction

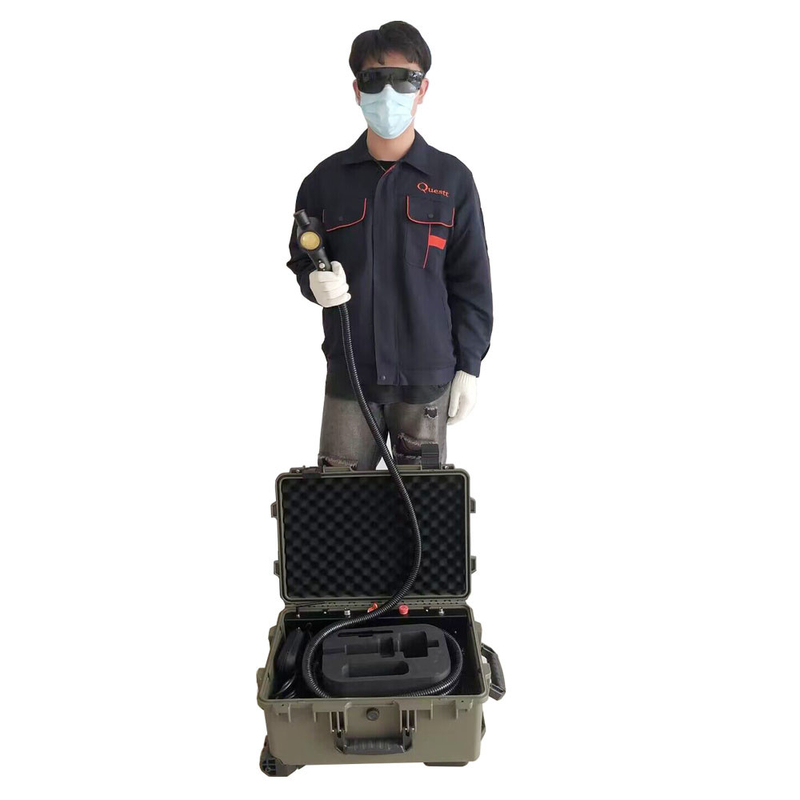

QA-LC100S Laser cleaning machine is a suitcase type machine.The weight is only 25kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Characteristic:
1.Compact dimension and light weight
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleaning
Specifications:
| Optical parameters | |
| Model | QA-LC100S |
| Laser source | Fiber |
| Laser power | 100W |
| Fiber cable length | 5 M |
| Laser wavelength | 1064nm |
| Pulse energy | 1.5 mJ |
| Pulse frequency | 1-4000KHz |
| Pulse width | 2-500ns |
| Power range | 10-100 adjustable |
| Cleaning speed | ≤12 M²/Hour |
| Power instability | <5% |
| Cooling | Air cooling |
| Cleaning head parameters | |
| Scan range | 0mm-110mm, supporting 8 scanning modes |
| Field mirror focal length | 160mm(Optional) |
| Cleaning head weight | ＜0.6kg |
| Mechanical parameters | |
| Machine dimension | 540*400*290 mm |
| Packing dimension | 680x540x400mm |
| Net weight | 25kg |
| Gross weight | 28kg |
| Operating environment | |
| Power consumption | ≤800W |
| Temperature | -40 ℃-40 ℃ |
| Voltage | Single phase 110V/220V±10%,50/60Hz |
| Working environment humidity | ≤80% |
Configurations
 |
Laser cleaning head The laser head is small and light, weighing less than 0.6kg, equipped with dust-proof protective mirrors. |
|
Touch screen controller Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes. |
|
|
Mobile APP control There are two control methods, one is a handheld controller, and the other is controlled by a mobile phone Bluetooth APP, with a timing function. Easy operation. |
|
|
Laser source JPT pulse laser source, maximun monopulse energy is 1.5mJ. The lifetime is 100000hours, warranty is 2 years. |
|
Buttons
2.Key switch: The main power switch of the machine. 3.Emergency stop button: Emergency stop button of the equipment. 4.Air interface:Connect dry compressed air to prevent dust from damaging the lens during cleaning
|
|
Laser safety goggles Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe
|
|
Focus lens Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm |
Application scope:
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc all the old and durty items
FAQ
1 Q: What is the warranty of the machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
