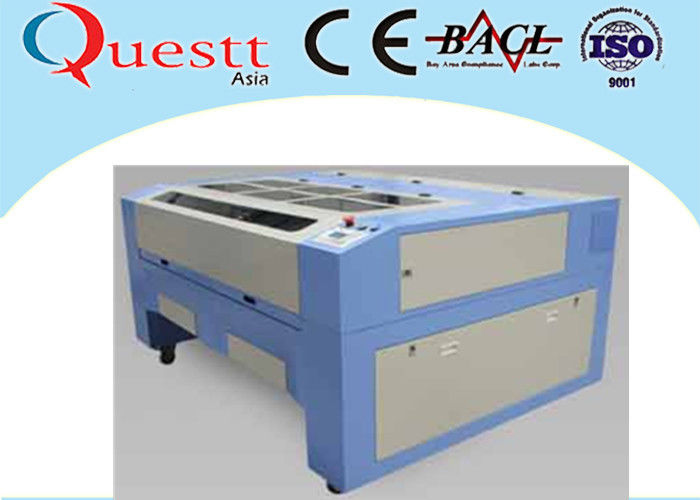

Stepper Motor CO2 Laser Engraving Machine 1-1000mm/S For Cardboard / Chipboard
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 130W | Laser Type | CO2 Laser |
|---|---|---|---|
| Service | Oversea Service | Warranty | 1 Year And Wholelife Service |
| Cooling | Water Cooling | Working Area | 1.6x1m |
| High Light | Laser Engraving Equipment,CNC Laser Engraving Machine |
||
Product Description
CO2 laser engraving machine cutting for paper card cardboard chipboard 1.6x1M
Introduction
QA130-1610 CO2 laser engraving cutting machine is specially for cutting and engraving all kinds of nonmetal materials, like Paper, Packaging materials, tin foil, card, cardboard, chipboard etc..
Laser can do cutting, engraving, hollowing, punching for a variety of textile, fabrics, garment, leather, shoe, upholstery, carpet, automotive interior, tent, etc. Laser processing technology is more sophisticated, creative and unique.
Features
1. Rotary fixture can be equipped to engrave cylinder vase, pencil vase, pencil and bamboo craftwork.
2. Working size and laser power can be customized as your requirement.
3. Smart nesting software is optional, it can fast layout cutting graphics in the most material-saving way.
4. The cutting system can do extra-long nesting and full format continuous auto-feeding and cutting on a single pattern that exceeds the cutting area of the machine.
5. 5-inch LCD screen CNC system supports multiple data transmission and can run in offline or online modes.
6. Following top exhausting suction system to synchronize laser head and exhaust system. Good suction effects, saving energy.
7. CCD camera recognition system (optional) realizes automatic contour capturing on the graphic of fabrics.
8. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software.
Specification
| Model | QA80-1060C | QA100-1390 | QA130-1610 | |
| Laser | CO2 glass sealed laser tube or RF metal sealed laser tube optional | |||
| Laser power | 60W/80W/100W | 60W/80W/100W/130W/150W | ||
| Work platform size | 1000×600mm | 1300×900mm | 1600x1100mm | |||
| Engraving speed | 1-1000mm/s | |||
| Cutting speed | 1-500mm/s | |||
| Worktable | honey-comb or slatted optional | |||
| Precision | ≤±0.025mm | |||
| Graphic format | PLT,BMP,DXF,DST,TIF | |||
| Working temperature | 0-45 degree C | |||
| Motor type | Stepper Motor | |||
| Water Cooling | Water chiller | |||
| The Whole Set |
1PCS CO2 laser cutting machine 1PCS Water chiller 1PCS Air pump 1PCS Fan blower |
|||
| Spare parts | Laser tube, Focal lens, Reflector lens(3PCS) | |||
| Electricity | 220V/50hz/1kva 110V60HZ 220V60HZ | |||
| G.W | 260KG | 430KG | 490KG | |
Materials
| Items | Engraving | Cutting |
|
Fabric Denim , leather , polyester , cotton , nylon , pongee , suede , jeans ,satin , corduroy , chiffon , tulle , fleece |
yes | yes |
| Wood Plywood , bamboo , veneer , mdf , polymeric materials | yes | yes |
|
Plastic PP , plastic , ABS plastic , PVC , pipe , polyester , sheet , insulation layer |
yes | yes |
| Organic Acrylic , rubber , resin , epoxy | yes | yes |
| Paper Packaging materials , tin foil , card , cardboard , chipboard | yes | yes |
| Composite Double color plate organic board | yes | yes |
|
Stone Ceramic , tile , marble ,granite , slate , gravestone , porcelain , tombstone , ceramic plate |
yes | no |
|
Other Nonmetals process materials , coating materials , plating materials , spraying materials |
yes |
no
|
Applications
Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
Non-woven fabrics: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
software.
Samples
Configuration
5 Stars Reviews from Customers:
FAQ:
1 Q: What is the warranty of the laser cutting machine?
A: 1 years` warranty and whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems,
using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machines?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
We offer operation manual and videos, show you how to operate the machine.
