1000 Watt Laser Welding Machine For Mould , water cooling system

1000 Watt Laser Welding Machine For Mould , water cooling system

  • High Light

    YAG Laser Welding Machine

    ,

    Portable Laser Welding Machine

  • Laser Power
    1000W
  • Service
    Oversea Service OK
  • Certificate
    CE ISO BACL
  • Laser Beam
    0.1-2mm
  • Laser Source
    Diode Rod YAG
  • Gurranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    CE,ISO,BACL
  • Model Number
    ROBOT-FL1000V
  • Minimum Order Quantity
    1set
  • Price
    Negotiable
  • Packaging Details
    Anti-water Exporting Plywood cases
  • Delivery Time
    13 days
  • Payment Terms
    T/T, Western Union,, L/C
  • Supply Ability
    3910 sets / year

1000 Watt Laser Welding Machine For Mould , water cooling system

1000 Watt Laser Welding Machine For Mould , water cooling system





Introduction



ROBOT-FL1000V laser welding machine equipped with CW 1000W fiber laser source.





Machine Advantages



1.Latest generation of fiber laser, self-developed wobble/common welding gun with safety sensing function and adjustable weld seam width;

2.Easy welding of large objects over long distances, and hard-to-reach places;

3.High strength and fine weld seam, no need for polishing, no consumables, no deformation; 4.3-10 times the speed of conventional argon arc welding plasma welding;

4.Power consumption is 10-20% less than traditional process, save 2-3 labor costs; 6.Simple operation, long service life.

7. The air-cooling compact design is easy to be integrated to automated production line.




Specification data sheet

Model ROBOT-FL1000V
Output Power 1000W
Laser Wavelength 1064nm
Laser welding Depth ≤5mm depending materials
Focus Spot 0.1-3.0mm
Red Light Spot 0.2-3.0mm
Power Max 10KW
Laser Power Supply 380V/3 phase/50Hz/40A
Max Weight load ≤200Kg
Worktable Runining distance 200*200mm to 1200*1200mm
Repeat Precision ±0.01mm
Position Precision ±0.02mm
Position System Red light, CCD and Optional Rotary
Laser Cooler Water Cooling
Dimension 1600*800*1800mm
Machine Weight 500kg


Applications



For kettle, vacuum cups, stainless steel bowls, door handles, electrical parts, filters, nozzles, stainless steel products, golf head, zinc alloy crafts such as welding. Can be welded graphics are: point, line, circle, square, or by the AUTOCAD software to draw any graphics, may be welded three-dimensional trajectory.

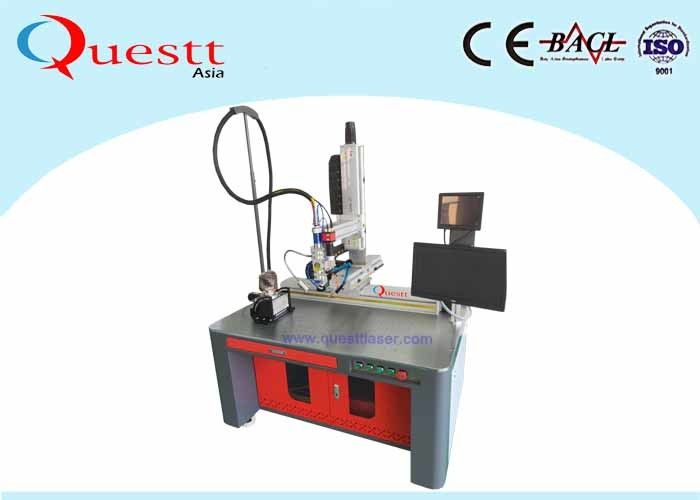

Machine outlook

1000 Watt Laser Welding Machine For Mould , water cooling system 0





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 1 year, but whole life after-sale service.

2 Q: What is the payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is the service

A: Engineers can offer oversea services .

4 Q: How about the quality?

A: Germany high technoloy.

5 Q: How is the operation?

A: We offer operation manual and videos.
