380V 10KW Metal Laser Cutting Machine With Sealed Working Table

380V 10KW Metal Laser Cutting Machine With Sealed Working Table

  • High Light

    10KW Metal Laser Cutting Machine

    ,

    380V Metal Laser Cutting Machine

    ,

    1070nm fiber laser metal cutting machines

  • Work Size
    2000 X 6000 Mm
  • Laser Power
    10000W
  • Laser Type
    Fiber Laser
  • Service
    Offer Oversea Service
  • Working Area
    Sealed Working Table
  • Cutting Thickness
    0 - 36mm
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    ISO , CE
  • Model Number
    FL10000-6020
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Standard Exporting Wooden Cases
  • Delivery Time
    7 - 32 days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    2888 sets / year

380V 10KW Metal Laser Cutting Machine With Sealed Working Table

    Big Sheet Metal Laser Cutting Machine 6M 10KW With Sealed Exchange Working Table

Overview

FL10000-6020 Super Quality Sheet Metal Laser Cutting Machine has equiped with a a big sealed working table 2000x6000mm, which can protect the workers during cutting very big metal sheet to get big size workpieces. The laser power is very high, that reaching 10000W, so it can cut very thick metal sheet up to 36mm.
Because of the big working area, the laser cutter can working for military and aerospace industry, cutting very big size metal sheet to make special unit parts for machinery.

The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
Fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption and longest working lifespan and the most important is highest accuracy and efficiency during processing the metal materials.
For the laser source, we import from the most famous company IPG to ensure our machines good quality.
Advantages

1. Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
2. Standard collocation of 2KW fiber laser generator and optional 500W-20000W fiber laser generator. Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.
3. Enclosure design conforms to CE standard for reliable and safe processing. Pallet changer is convenient for material uploading and unloading and further improving working efficiency.
nt-weight:normal;text-transform:none;font-style:normal;font-size:9.0000pt;mso-font-kerning:0.0000pt;" >
2. Standard collocation of 2KW fiber laser generator and optional 500W-3000W fiber laser generator. Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.
4. Low Consumption of Energy: It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
5. Maintenance-free: Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free
6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9. Auto focus system to change focus length automatically while process uneven materials
10. Nesting Software provides efficiency and saving materials


Parameters


Laser output power10KW/20KW
Laser wavelength1070nm
Laser typeFiber laser souce
Max cutting speed18m/min
Max cutting thickness0-24mm according to material
Output energy regulating10%~100%
Input electric power for laser≤2KW
Type of coolingWater cooling
Drive modeImported servo motor
Transmission modeImported high precision Rack and Pinion
Working temperature5-45 degrees
Continous working time24 hours
Max-range for cutting4000mm×2000 mm/ 6000x2000mm
Power supply380V/50HZ
ServiceOversea service for installation and training




Operation Cut System Software,
support AutoCAD, CorelDraw: The professional cutting software which supports cutting path in dxf, plt and other graphic formats; capable of setting cutting parameters in different layers; combining joined lines to ensure automatic splice of curve nodes; smoothing fold lines to obtain smooth cuts; optimized immediately after the completion of graphic design, thus improve the productivity. By making use of the compensation function of this professional cutting software, various cutting accuracy grades may be obtained.

Nesting Software:
1, It provides full-featured management capabilities and complete cutting solution
2,Its features of optimization and co-ordination for multiple sheets significantly improve the comprehensive utilization rate. The advanced and practical function of cutting optimization improves the cutting efficiency and reduces the cutting cost considerably.
3,It is with strong graphics processing and import capabilities and it supports all versions formats of CAD file. Abundant functions of aggregating statistics and reporting data for cutting materials

Application

It has been widely used in the field of aviation and space, weapon, warship, petrifaction, medical, instrument, micro-electron, auto mobile car and so on

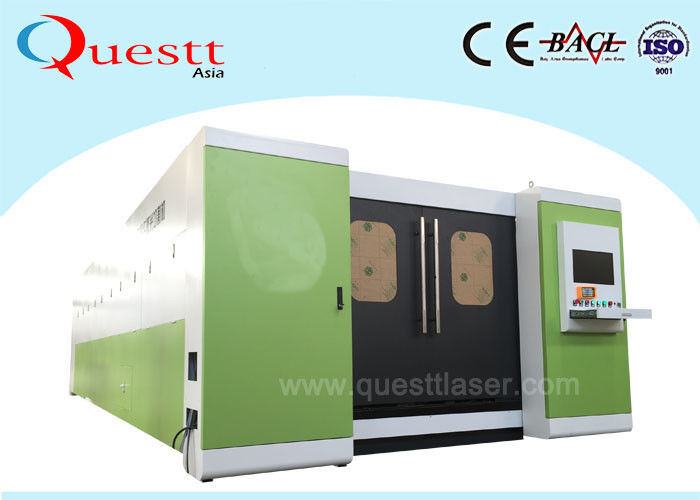

Machine outlook
 380V 10KW Metal Laser Cutting Machine With Sealed Working Table 0

FAQ
1 Q: What is the warranty of the fiber laser cutting machine ?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training
