50W Handheld Fiber Laser Rust Removal Machine For Cleaning Welding Oxide

50W Handheld Fiber Laser Rust Removal Machine For Cleaning Welding Oxide

  • High Light

    laser rust and paint remover

    ,

    laser cleaning machine

  • Laser Power
    50Watts
  • Beam Width
    10-70mm
  • Laser Source
    Fiber Laser
  • Service
    Online And Overseas Service
  • Speed
    0-7000mm/min
  • Weight
    26kg
  • Place of Origin
    Wuhan, China
  • Brand Name
    QUESTT
  • Certification
    ISO CE
  • Model Number
    QA-LC50D
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Standard Exporting Wooden Cases
  • Delivery Time
    29 days
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    3988 sets per year

50W Handheld Fiber Laser Rust Removal Machine For Cleaning Welding Oxide

50W Handheld Fiber Laser Rust Removal Machine for Cleaning Paint/graffiti/welding oxide



Description:

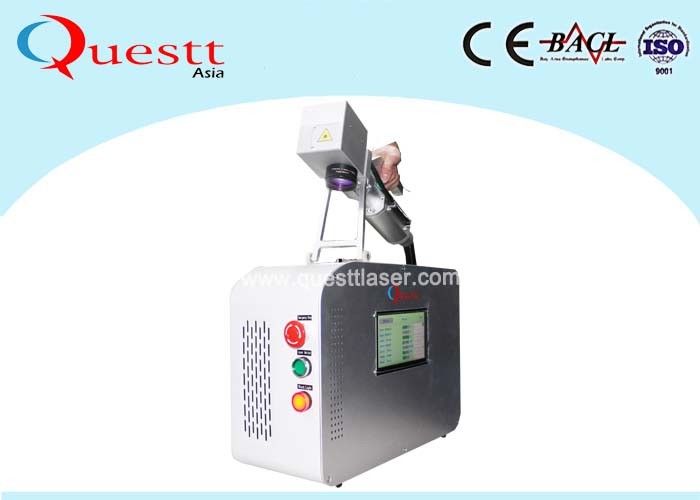

QA-LC50D is a 50W portable laser rust removal machine

This new design laser rust removal machine has equipped with a sepearte scanner head..

Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.



The weight is only 20kgs, you can also take up by hand easily.

There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important.





Product features:



1. Laser cleaning has no grinding, non-contact, no thermal effect

2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;

3. No damage to substrate of the products;

4. High cleaning precision, strong controllability;

5. Can be used for a long time, low operating costs;

6. The device can realize automatic operation and simple operation;

7. Environmentally friendly, no supplies, no two pollution

8. It is suitable for various materials, etc.

50W Handheld Fiber Laser Rust Removal Machine For Cleaning Welding Oxide 0



Specifications:



Model QA-LC50D QA-LC100 QA-LC200 QA-LC500
Laser source Fiber Fiber Fiber Fiber
Laser Power 50W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 10M
Pulse Energy 1 mJ 1.5 mJ2  mJ 50 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 2-2000KHz 2-2000KHz 10-2000KHz 10-50KHz
Clean speed ≤2 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air cooling Water cooling
Dimension 450*300*500 650*350*560 900*600*1100 1600*1100*1800
Weight 26Kg 36Kg 120Kg 300Kg
Beam width 10-100mm 10-100mm 10-100mm 10-100mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ


Application field:
Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
Die Cleaning, welding surface pretreatment, metal surface roughness, natural rock cleaning, metal and glass surface coating removal, the whole surface off paint;


50W Handheld Fiber Laser Rust Removal Machine For Cleaning Welding Oxide 1



FAQ:



1 Q: What is the warranty of the fiber laser rust remover machine?

A: 2 yearwarranty and whole life after-sale service.

2 Q: What is your payment terms?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after sale service?

A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the operation of the laser cleaning machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
