100 Watt Backpack Ternary Lithium Battery Laser Cleaning Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 100 Watt | Certificate | CE Certificates |
|---|---|---|---|
| Beam Width | 70mm | Laser Source | Fiber Laser Source |
| Service | Online And Overseas | Speed | 0-7000mm/min |
| High Light | Ternary Lithium Battery Laser Cleaning Machine,AC 220V Laser Cleaning Machine,100 watt laser rust cleaner |
||
Product Description
Ternary Lithium Battery Laser Cleaning Machine Backpack for outdoor 100W
Description:

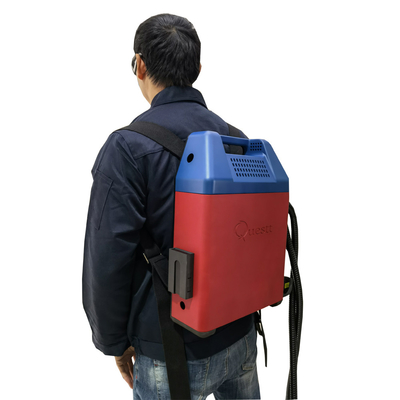

QA-LC100B is a backpack type laser rust rmeoval machine, whick equipped with Ternary Lithium battery.
It is free to wrok outside and in air, like on bridge, buliding walls, tower without electricity power cable, where can not get electrial power.
Easy to carry and operation, free to move anywhere you like.
For some outside cleaning job, it is not easy to carry a big machine with the operator.
So backpack laser cleaning machine is the best choice.
There is oxidation and corrosion when metals meet oxygen and water vapor in air.
It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Backpack laser rust removal machine is specailly designed to clean such rust outside.

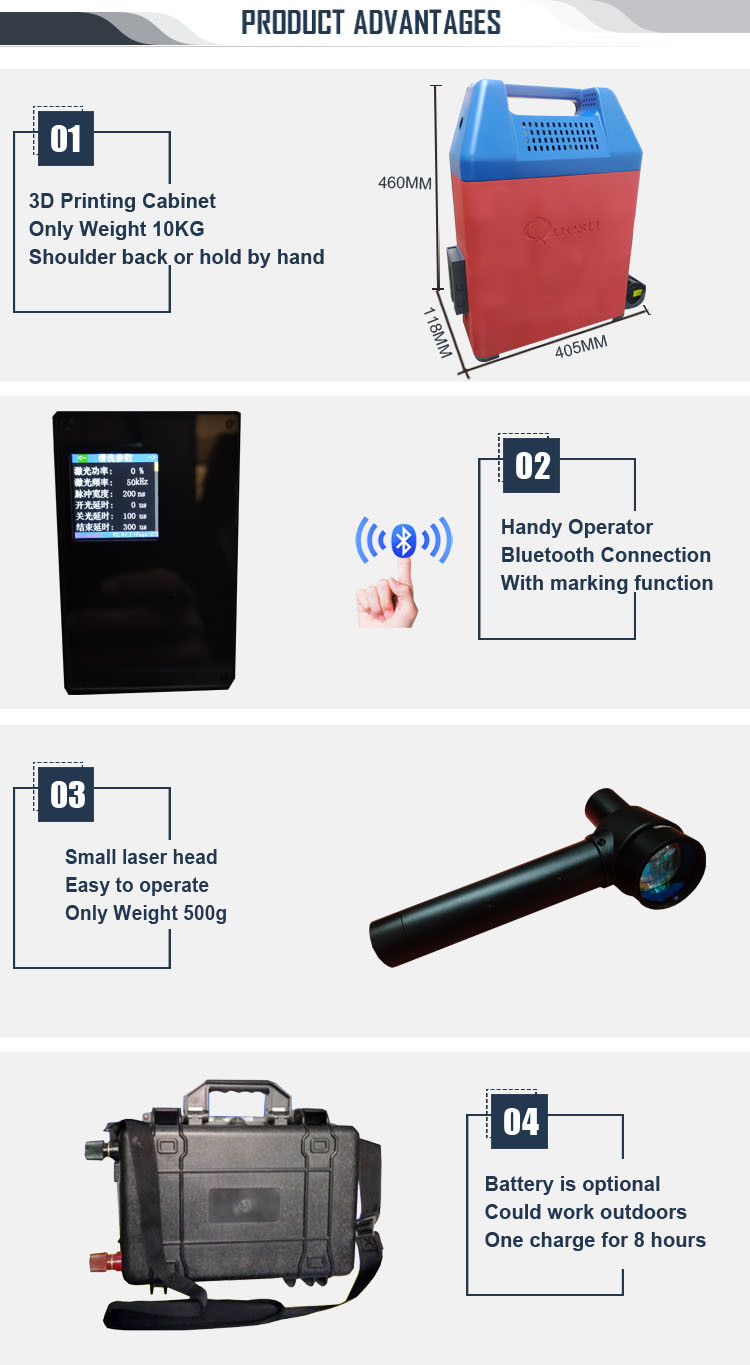

Product features:
1. Free to wrok outdoor with battery
2. Laser pulses are very suitable for the removal of different materials;
3. Different languages to choose;
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;.
7. Easy to operate,
8. Convenient to work in air on platform
Specifications:
Backpack Laser Rust Removal Machine HQ.pdf
| Model | QA-LC30B | QA-LC50B | QA-LC100B |
| Laser source | Fiber | Fiber | Fiber |
| Laser Power3 | 0W | 50W | 100W |
| Fiber cable length | 2 meters | 2 meters | 2.5 meters |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Pulse Energy | 0.6 mJ | 1 mJ | 1.5 mJ |
| Pulse frequency | 30-60KHz | 1-2000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling |
| Dimension | 300*160*450 mm | 300*160*450 mm | 500*180*450 mm |
| Weight | 18Kg | 18Kg | 20Kg |
| Beam width | 10-70mm | 10-70mm | 10-100mm |
| Optional | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50/60HZ | Single Phase AC 220V,2.5A | Single Phase AC 220V 4.5A |
Comparison with traditional cleaning methods:
| Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Application scope:
FAQ
1 Q: What is the warranty of the backpack laser cleaner?
A: The warranty is 2 year, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
