3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 2 Years | Wavelength | 1064nm |
|---|---|---|---|
| Welding Depth | 5mm | Laser Type | Fiber Laser Generator |
| Max. Output Power | 3000W | Power Supply | 220v/50Hz,380V/50/60HZ |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Cooling System | Water Cooling |
| High Light | 3In1 Handheld Fiber Laser,3In1 Fiber Laser Machine 1500W,3000W Metal Laser Welding Machine |
||
Product Description

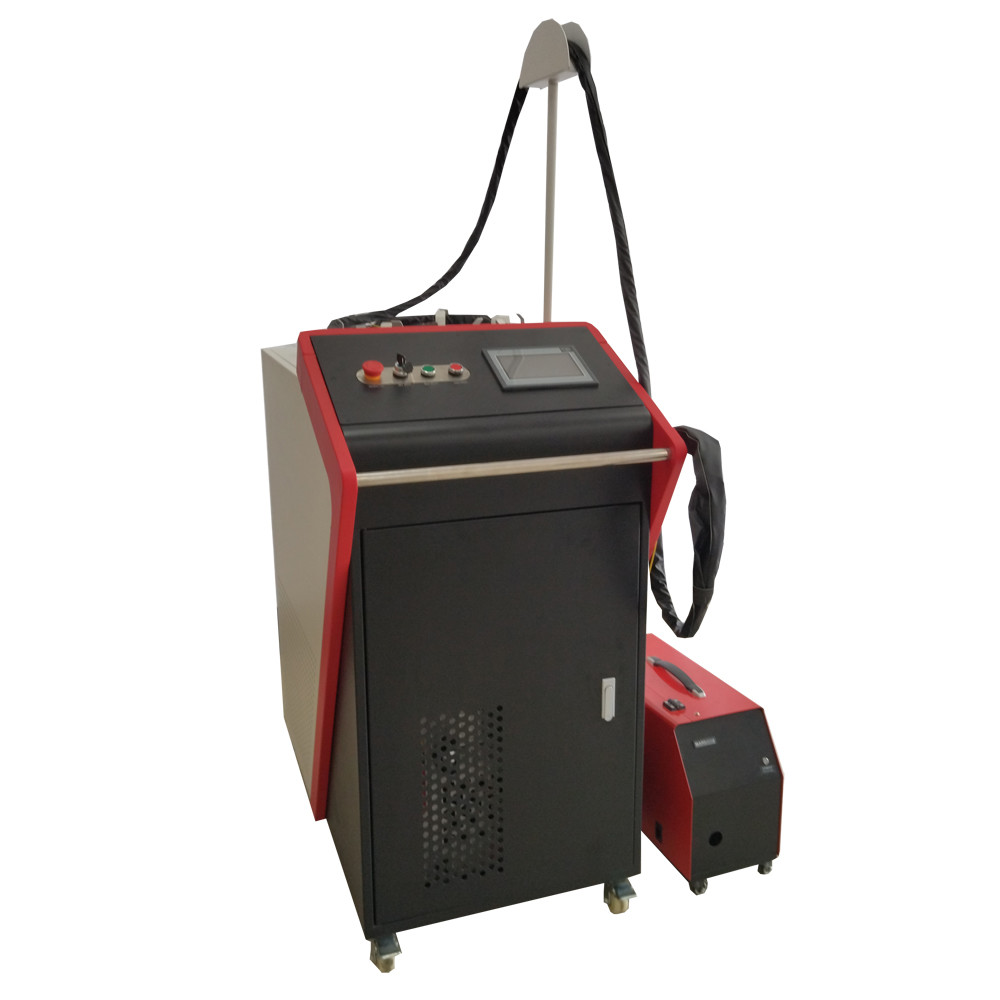

3 In 1 Handheld Fiber Laser Welding Cleaning Cutting Machine 1500W 2000W 3000W Metal Laser Welding Machine
Features
1. One machine, three functions: welding, cleaning and cutting, the conversion of each function is convenient and simple.
2. The hand-held cleaning head has a simple hand-held structure and is easy to carry. Equipped with a touch screen, it is convenient to switch parameters during work and simplify the operation. Weight 0.75kg, light to use without fatigue.
3.This laser equipment can be used for metal cleaning, rust removal, welding and cutting.
4. Redlight positioning, makes the work position is more accurate and beautiful.
5. The hand-held laser welding machine can work manually or be installed on a robot, so that the machine can work fully automatically and improve work efficiency.
6. Built-in high-efficiency chiller, the whole machine has a compact structure and weighs only 160KG after packing with auto wire feeder.
Three type heads
Three types gun
|
Laser welding head |
|
Laser cutting head |
|
Laser cleaning head |
Parameters
| Model | QA-FL1000W | QA-FL1500W | QA-FL2000W |
| Average output power | 1000W | 1500W | 2000W |
| Operation Mode | CW/Modulate | ||
| Max Modulation Frequency | 5KHz | ||
| Output Power Stability | ±3% | ||
| Red Laser | Yes | ||
| Terminal Type | QBH | ||
| Beam Quality | 1.3M2 | 1.5M2 | 1.8M2 |
| Polarization | Random | ||
| Delivery Cable Length | 20M | ||
| Power Supply | 1 PH 220V five wire connect | ||
| Control Mode | RS232/AD | ||
| Power Consumption | 4KW | 5KW | 6KW |
| Cooling | Water Cooled | ||
| Operation Temperature | 10-40 degree | ||
| Max Depth of welding | 3mm | 4mm | 5mm |
| Machine Weight | 250Kg | 250Kg | 260kg |
| Package size | 1230*730*1440mm | ||
