2000w 3000w 6000w Robot Laser Cutting Machine for Helmet

Place of Origin China
Brand Name QUESTT
Certification CE ISO
Model Number 3000W Robot 3D
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 20 days
Payment Terms T/T
Supply Ability 2000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type Fiber Laser Application Laser Cutting
Cooling Mode Water Cooling After-sales Service Provided Online Support
Cutting Thickness Depends Laser Source JPT / IPG / Raycus / Max
Leave a Message
Product Description

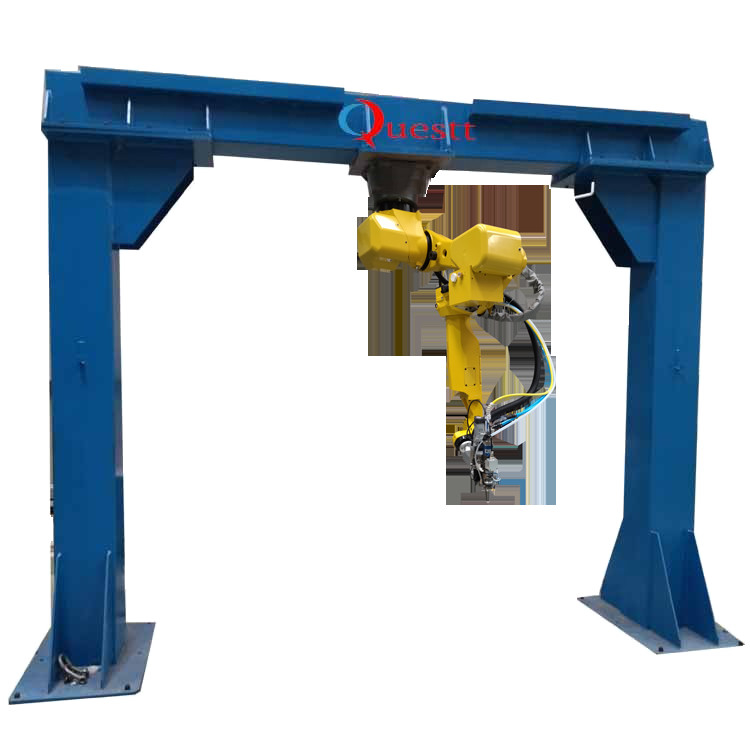

3000w 3D fiber laser cutting machine

Introduction



Wuhan QUEATT series 3D fiber laser cutting machine adopts the structure of vertical fixed industrial robot base, equipped with fiber laser, which can flexibly transmit high-quality laser to the fiber cutting head for focusing, and cooperate with high-precision capacitive tracking system , to achieve multi-angle, multi-directional three-dimensional flexible cutting of metal sheets of different thicknesses.

The PLC system independently developed and designed, combined with the flexible and fast action performance of industrial robots, can be used for teaching programming or offline programming for different products and different trajectories. It is especially suitable for special-shaped processing of three-dimensional parts of locomotives, so it is widely used in locomotive parts. , body, door frame, trunk, roof cover, door seat and other locomotive manufacturing industries.

The three-dimensional fiber laser cutting machine has a small footprint, simple operation and maintenance, and low maintenance costs. It is an advanced three-dimensional fiber laser cutting equipment that integrates high stability, high precision, high performance, and high speed



Main Configurations

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 0

Robotic system(ABB,FUNAC or Chinese robot)

Japan FANUC M-20IA high-precision six-axis robot

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 1

Max fiber laser source 3000W

The lifetime is 100000 hours



2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 2

Dedicated laser 3D cutting head

Three-dimensional pointed cutting, including collision protection device, air blowing, cooling system

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 3

Cooling system

Dual-temperature dual-control cooling system (laser cooling water cooling, laser cutting head normal temperature water cooling)

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 4

Dedicated control system

Laser mode and power control

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 5

Helmet tooling structure

tooling fixture



Optional configurations

1.Teaching Simulation System

2.Other brands of robots

3.Protecting mask

4.Dedicated tables and fixtures

5.Other special requirements customized



Function description

1.Special features for laser cutting.

2.Fast and responsive surface following function.

3.Special database functions for various graphics cutting.

4.Special operation interface configuration function for robot cutting.

5.Special TCP function for robot 3D cutting, cutting from multiple angles.



Cutting samples

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 6

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 7

2000w 3000w 6000w Robot Laser Cutting Machine for Helmet 8





Robot technical parameters





Robot effective radius FANUC-M20iA: 1800mm
Working size 2200mm×1800mm×200mm
Repeat positioning accuracy FANUC ±0.06mm
Maximum positioning speed 30m/min
The maximum load 200kg
Power supply 380V/50HZ
Protection level IP54
Main processing parts Three-dimensional parts cutting and processing



3000w laser technical parameters





Laser output power 3000W
Laser wavelength 1070 nm
Laser medium Glass fiber with rate-earth element
Max cutting speed 160m/min
Max cutting thickness 3-10mm according to material
Output energy regulating 10%~100%
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
Power supply 380V/50HZ

Delivery and payment terms



1. Validity

This quotation is valid for 30 days after quotation date



2. Trading term

The above prices are based on FOB WUHAN CHINA



3. Terms of payment:

50 % advance payment on order by T/T, 50 % before shipping



4. Delivery time (FOB Wuhan/China)

Machine shall be ready for shipping approx 45 working days after receiving of the advance payment .



5. Retention of ownership

The delivered goods remain the property of Questt until all payments have been made.



6. Shipment

by sea.
