IPG CNC Fiber Sheet Metal Laser Cutting Machine

Place of Origin China
Brand Name Questt
Certification ISO , CE
Model Number FL4000-6020
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 7 - 32 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2900 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Work Size 2000 X 6000 Mm Laser Power 4000W
Laser Type Fiber Laser Service Offer Oversea Service
Working Area Sealed Working Table Cutting Thickness 0 - 20mm
High Light

Sheet Metal Cutting Machine

,

Fiber Laser Cutting Machine

Leave a Message
Product Description



3mm 4mm 5mm 6mm 10mm 20mm 25mm 30mm IPG CNC

Fiber Sheet Metal Laser Cutting Machine for Brass Iron Steel Aluminum

Overview

FL4000-6020 6x2M CNC Sheet Metal Laser Cutting Machine has equiped with double exchange working tables, size 2000x6000mm, which can protect the workers during cutting very big metal sheet to get big size workpieces. The laser power is very high, that reaching 3000W, so it can cut very thick metal sheet up to 25mm.
Because of the big working area and sealed cover, the laser cutter can working for military and aerospace industry, cutting very big size metal sheet to make special unit parts for machinery. Also the operation will be much safer!

The top advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
Fiber laser source is the most advanced laser source for metal cutting, there are a lot of unique advantages, such as free maintenance, lowest power consumption and longest working lifespan and the most important is highest accuracy and efficiency during processing the metal materials.
For the laser source, we import from the most famous company IPG in Germany to ensure our machines in best quality.

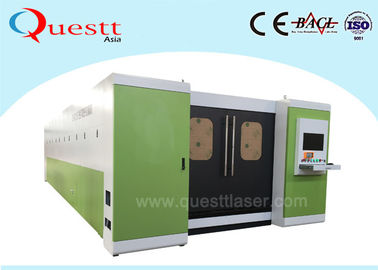

IPG CNC Fiber Sheet Metal Laser Cutting Machine 0
Advantages
1. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.

2. High cutting speed: Cutting speed is more than 12m/min

3. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100, 000 hours;

4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Maintenance-free: Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free
6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9. Auto focus system to change focus length automatically while process uneven materials
10. Nesting Software provides efficiency and saving materials


Parameters

Laser output power 1000W/2000W/4000W
Laser wavelength 1070 nm
Laser type Fiber laser souce
Max cutting speed 18m/min
Max cutting thickness 0-24mm according to material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
Working temperature 5-45 degrees
Continous working time 24 hours
Max-range for cutting 6000mm×2000 mm/ 4000x2000mm
Power supply 380V/50HZ
Service Oversea service for installation and training




Cutting Thickness table:



Material / Laser Power 500W 750W 1000W 1500W 2000W 3000W 4000W
Carbon Steel 6mm 8mm 10mm 14mm 16mm 20mm 25mm
Stainless Steel 3mm 4mm 5mm 8mm 10mm 12mm 15mm
Aluminum 1mm 3mm 4mm 5mm 6mm 8mm 10mm
Brass 1mm 2mm 4mm 4mm 6mm 8mm 8mm
Copper 1mm 2mm 3mm 3mm 4mm 5mm 6mm
Galvanized Steel 1mm 2mm 4mm 5mm 6mm 8mm



10mm




Application

It is used widely on advertising signs production, sheet metal structures, production of high and low voltage electrical cabinet, textile machinery parts, kitchen, auto, machinery, metal technics, saw, electrical parts, glasses, spring, PCB, electrical kettle, medical microelectronics, hardware, tools, etc.


Samples
IPG CNC Fiber Sheet Metal Laser Cutting Machine 1


FAQ



1.Q:What is the warranty of the cnc laser cutting machine?

A:Questt Lasers have a warranty for 1-2 years.

2.Q:Are you a factory or trading company?

A:Quesstt Lasers is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

A:Quesstt Lasers Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

6.Q:How can i get assurance of my Payment?

A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
