Home > products > Fiber Laser Welding Machine > 800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder

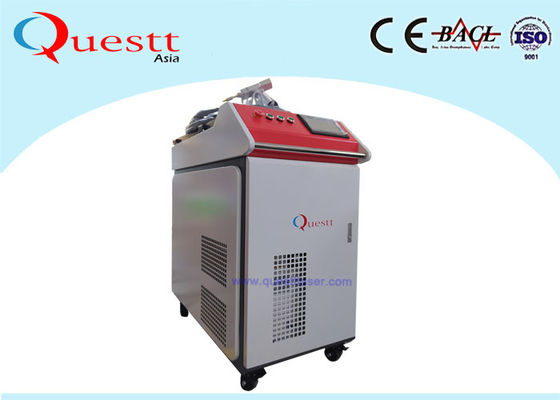

800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder

Product Details

Place of Origin: Wuhan,China

Brand Name: Questt

Certification: CE ISO

Model Number: QA-FLW800A

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiable

Packaging Details: Plywood cases

Delivery Time: 16 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 9988 sets / year

Get Best Price
Highlight:

Raycus Fiber Laser Welding Machine

,

GW Fiber Laser Welding Machine

,

Handy Fiber Laser Welder

Laser Type:
Fiber Laser
Wavelength:
1064nm
Laser Power:
800W
Welding Wire:
0.1-2mm
Welding Frenquency:
1-50HZ
Power Supply:
220V 50HZ
GW:
60kgs
Laser Type:
Fiber Laser
Wavelength:
1064nm
Laser Power:
800W
Welding Wire:
0.1-2mm
Welding Frenquency:
1-50HZ
Power Supply:
220V 50HZ
GW:
60kgs
800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder

800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder


Introduction
QA-FLW800A Fiber laser welding machine adopts a 800W continous fiber laser source
The fiber lasers are available for requalifying existing lamp-pumped processes at the application facilities and applications labs.
The fiber laser welding machine head adopts air-cooled design, it won’t get over-heated during welding, small diameter, easy for hand-holding.
The handheld fiber laser welding machine changes the traditional welding method, using a high-intensity laser beam as the heat source for welding, and is equipped with a hand-held welding head to replace the previous fixed optical path.
Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
The laser welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.
800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder 0

Features

1. Adpot integrated structure;
2. Handheld laser head,easily operated ,pciking and moving.
3. Fiber laser source with high welding performance.
4. Control the laser beam only comes out when welding starts.

5. Welding seam does not need to be polished: After welding, smooth and no fish scales, beautiful and no scars, and fewer follow-up polishing procedures.

6. Welding without consumables: The handheld laser welding machine can easily complete the welding, reducing the material cost in production and processing.

7. With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.



800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder 1
800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder 2
Specification


Model

QA-LWF700A

QA-LWF800A

Average output power

700W

800W

Operation Mode

CW/Modulate

Max Modulation Frequency

5KHz

Output Power Stablility

<3%

Red Laser

Yes

Terminal Type

QBH

Beam Quality

1.3M2

1.5M2

Polarization

Random

Delivery Cable Length

15M

Power Supply

220V 50Hz

Control Mode

RS232/AD

Power Consumption

4KW

6KW

Cooling

Water Cooled

Operation Temperature

10-40 degree

Max Depth of welding

2mm

3mm

Machine Weight

60Kg


Application
Especially for metal materials welding.
Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries


FAQ



1 Q: What is the warranty of the Handy laser welding machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.

3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.

Welding samples:
800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder 3
800W Handheld Fiber Laser Welding Machine Air-cooled Laser Welder Mini Laser Welder 4
