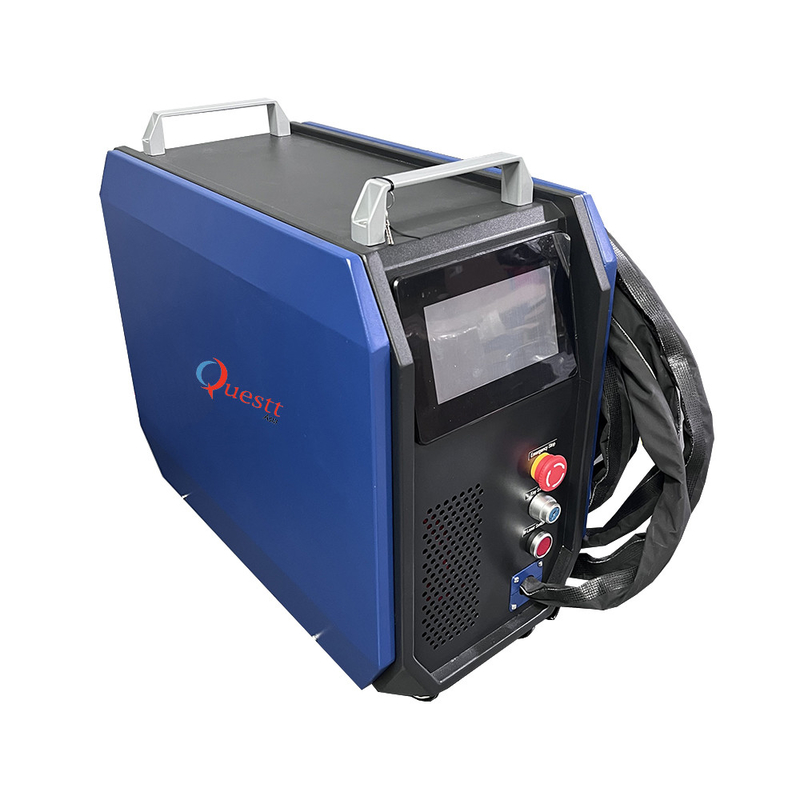

Name: 3 In 1 700w 1000w 1500w air cooler handheld laser welding machine
Brand: Wuhan Questt ASIA Technology Co., Ltd.
SKU: QA-AC1000
Price: 10,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: QUESTT

Certification: CE ISO

Model Number: QA-AC1000

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden case

Delivery Time: 7 days

Payment Terms: T/T, Western Union,

Supply Ability: 3000 sets per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                700w handheld laser welding machine


Warranty:	1 Year	Wavelength:	1064nm
Laser Type:	Fiber Laser	Max. Output Power:	1000W
Power Supply:	220v/50/60Hz	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Cooling System:	Air Cooling	Application:	Laser Welding Machine

Warranty:	1 Year
Wavelength:	1064nm
Laser Type:	Fiber Laser
Max. Output Power:	1000W
Power Supply:	220v/50/60Hz
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Cooling System:	Air Cooling
Application:	Laser Welding Machine

3 In 1 700w 1000w 1500w air cooler handheld laser welding machine

Air cooling laser welding cleaning machine
3 In 1 700w 1000w 1500w air cooler handheld laser welding machine 0

Features

1. Easy to move and hold.

2. Precise and stable.

3. High safety performance.

4. High efficiency and high quality.

5. Low energy consumption and long life.

6. Patent appearance.

7. Simple storage.

8. Easy maintenance.

3 In 1 700w 1000w 1500w air cooler handheld laser welding machine 1

Parameters

Model	QA-LWF800A	QA-LWF1200A	QA-LWF1500A
Average output power	800W	1200w	1500w
Power Consumption	2500w	4500w	5500w
Operation Mode	CW/Modulate
Max Frequency	20KHz
Output Power Stability	±3%
Red Laser	Yes
Terminal Type	QBH
Delivery Cable Length	10M
Power Supply	1 PH 220V 50/60Hz
Cooling	Air-cooled
Operation Temperature	-10-40 degree
Max Depth of welding	2mm	3mm	4mm
Cleaning range	1-20mm
Cutting thickness	0.2mm	0.3mm	0.5mm
Machine Net Weight	50kg	55kg	58kg
Machine Gross Weight	66kg	70kg	73kg
Machine dimension	700400700mm	700400700mm	700400700mm

Main parts pictures

Name	Pictures
Max laser source 100,000 hours lifetime and can choose other brand laser source according to customer’s requirement
Wire feed mechanism The machine with automatic wire feeding. The light spot can be adjusted and the max wire diameter can reach 1.6mm.
Welding head Lightweight and flexible, 3 in 1 welding, cleaning and cutting

Samples
3 In 1 700w 1000w 1500w air cooler handheld laser welding machine 5
