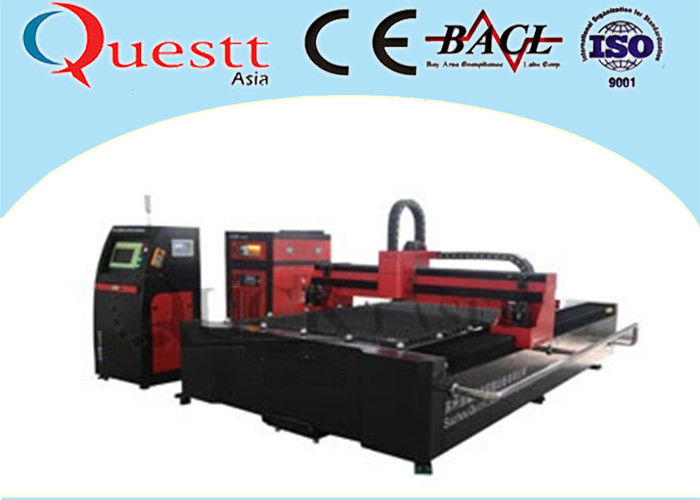

Excellent Beam Laser Cutting Machine For Sheet Metal with CE 2000W Auto focus head
FL1000B-1530 Excellent Beam Laser Cutting Machine is specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper
The laser cutter consists of 5 parts ,the machine bed host, electrical control, water cooling unit, air cooling system and Exhaust system.
A. The machine bed host is the main part of the whole laser cutting machine. Cutting function and cutting accuracy of laser cutting machine are realized by it. It consists of 6 parts ,the bed, laser source, cantilever, Z axis device, work table, the auxiliary system (Protective cover, gas and water) and operating table.
B. The electrical control system is an important part of ensuring that all kinds of graphics running tracks, which is composed of the CNC and the low-voltage electric system.
The CNC machine bed Equipped with BECKOFF system. This system is based on Windows XP operation system.
C. Other auxiliary peripheral equipment including large water chiller, cooling system, exhaust system and power supply
1. Great Performance: Identical cutting quality on any cutting point is realized through fiber transmission.
2. High Efficiency: The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3. Low Consumption of Gas: Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4. Low Consumption of Energy: It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
5. Maintenance-free: Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free
6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;
7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;
9. Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.
10. Standard collocation of 1KW fiber laser generator and optional 500W-3000W fiber laser generator. Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.
|Laser output power||500W/1000W/2000W|
|Laser wavelength||1070 nm|
|Laser type||Fiber laser souce|
|Max cutting speed||18m/min|
|Max cutting thickness||3-10mm according to material|
|Output energy regulating||10%~100%|
|Input electric power for laser||≤2KW|
|Type of cooling||Water cooling|
|Drive mode||Imported servo motor|
|Transmission mode||Imported high precision Rack and Pinion|
|Max-range for cutting||3000mm×1500 mm/ 2500x1300mm|
|Service||Oversea service for installation and training|
Metal cutting machine for jewelry is specially for jewelry, but also widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting
Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days
Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days
