Stainless Steel Iron Fiber Laser Etching Machine For Metal 10W Air-Cooling

Stainless Steel Iron Fiber Laser Etching Machine For Metal 10W Air-Cooling

  • High Light

    laser marking equipment

    ,

    desktop laser marking machine

  • Laser Power
    10Watt
  • Cooling
    Air-cooling
  • Control System
    Laptop Free
  • Service
    Oversea Service Available
  • Working Area
    110x110mm
  • Gross Weight
    120kg
  • Place of Origin
    China
  • Brand Name
    Questt
  • Certification
    CE ISO BACL
  • Model Number
    Quantum - FL10B
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Plywood cases
  • Delivery Time
    6 working days
  • Payment Terms
    T/T, Western Union,, L/C
  • Supply Ability
    2660 sets / Year

Stainless Steel Iron Fiber Laser Etching Machine For Metal 10W Air-Cooling

Laser etching machine for metal like Stainless steel Iron Imported Galvo Scanner

Product descriptions

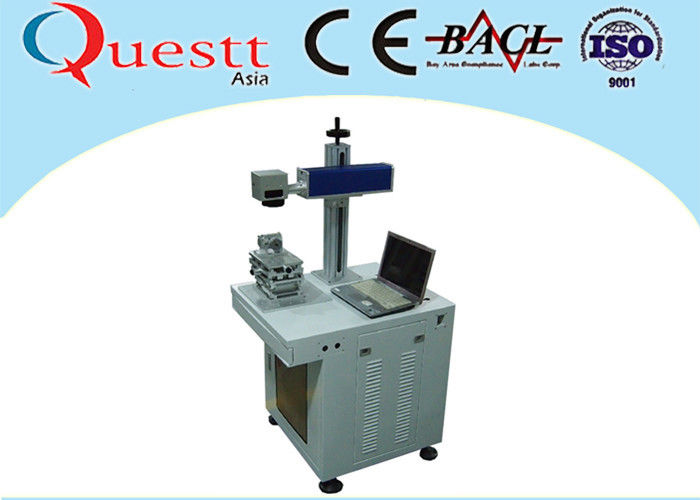

1. Quantum - FL20B Laser etching machine for metal is a benchtop laser marking machine with four wheels on the ground, so the machine can move easily in your factory. Much convinient for transport.



2. We have rotate device, conveyor, handy welding head for optional choices.



3. It can automatically perform the engraving of characters, signs, graphs, images, bar codes, two-dimensional codes, and automatically increasing serial numbers to a wide range of materials.



4. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production. Long lifetime up to 100,000 Hours.





Specification

Fiber Laser Etching Machine.pdf



Product Specifications
Product Quantum-FL20B Metal Laser Marking Machine
Purpose Marking printing engraving
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber laser source
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm, 110x110mm (standard), 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis Z Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 690x700x1100mm
Weight (kg) 70kg
Guarantee:
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED (Except Smart Series)
  20,000hrs/18 months - Smart Series
  10,000hrs/12 months - Diode Pumped
  100,000hrs/2 years - Fiber LASER





Applications



The spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication







Samples



Stainless Steel Iron Fiber Laser Etching Machine For Metal 10W Air-Cooling 0





FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 1 year, but whole life service.



2 Q: Are you a factory or trading company?

A: We are factory for 22 years.



Q: What is the service

A: Engineer oversea service available.



4 Q: How about the quality?

A: Questt Laser Technology is from Germany.High quality best price.







PC display



Stainless Steel Iron Fiber Laser Etching Machine For Metal 10W Air-Cooling 1
