Product Details
Place of Origin: CHINA
Brand Name: Questt
Certification: CE ISO
Model Number: QA-OFLM20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1800-3800
Packaging Details: WOODEN CASE, CARTON
Delivery Time: 15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 SETS/MONTH
Positioning Mode: |
Blue Light Indication |
Laser Wavelength: |
1064nm |
Minimum Linewidth: |
0.012mm |
Machine Material: |
All Aluminum Sandblasting Oxidation |
Cooling System: |
Air Cooling |
Laser Source: |
MAX-P, MOPA Laser |
Production Line Speed: |
0~130m/min (depending On The Material) |
Humidity: |
≤95 |
Positioning Mode: |
Blue Light Indication |
Laser Wavelength: |
1064nm |
Minimum Linewidth: |
0.012mm |
Machine Material: |
All Aluminum Sandblasting Oxidation |
Cooling System: |
Air Cooling |
Laser Source: |
MAX-P, MOPA Laser |
Production Line Speed: |
0~130m/min (depending On The Material) |
Humidity: |
≤95 |

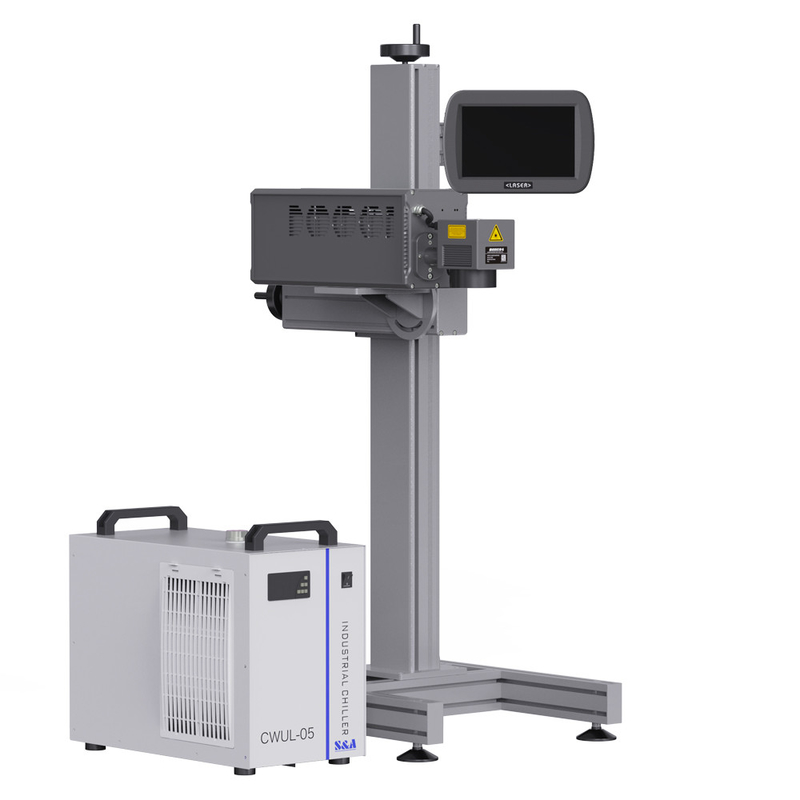

The Fiber Laser Marking Machine is designed to provide users with an efficient and reliable way to mark or engrave on a variety of materials. This laser marking machine is equipped with an advanced MAX-P or MOPA laser source, which offers a beam quality of up to 0.003mm in repetition accuracy and 1064nm in laser wavelength. It also features a blue light indication positioning mode and consumes only 400 watts of power. This powerful and versatile laser marking machine is ideal for marking and engraving on a variety of materials, including metal, plastic, glass, and wood. It is also suitable for UV laser engraving, with its 30W UV laser marking machine providing maximum precision and accuracy. With its affordable UV laser marking machine price, it is sure to meet the needs of businesses in a wide range of industries.
1. High precision: UV lasers can produce small, precise marks and engravings that are difficult to achieve with other types of marking technologies.
2. Versatility: UV laser engraving machines can mark on a wide range of materials, including metals, plastics, ceramics, glass, and leather.
3. Speed: The high marking speed of up to 12,000mm/s enables the engraving process to be completed quickly and efficiently.
4. Non-contact marking: Unlike traditional engraving techniques, UV laser engraving machines do not require physical contact with the material, reducing the risk of damage or deformation.
5. Minimal maintenance: The solid-state design of UV laser engraving machines requires minimal maintenance, making them a cost-effective option for businesses of all sizes.
6. Environmental-friendliness: UV laser engraving machines use less energy and emit fewer harmful emissions than other types of marking technologies.
7. Permanent marks: Engravings made by UV lasers are highly durable and resistant to wear, fading, and corrosion, ensuring they will last for years to come.
8. Customizability: UV laser engraving machines can easily create personalized engravings and designs, making them an ideal tool for businesses looking to provide unique and tailored products to their customers.
Technical Parameters | Value |
---|---|
Minimum linewidth | 0.012mm |
Focus lens | 165mm |
Cooling System | Air Cooling |
Laser Power | 20W/30W/50W |
Overall dimension | Nose:500mmX103mmX110mm Control Box:416mmX170mmX267mm |
Marking range | 110mm×110mm(optional) |
Production line speed | 0~130m/min (depending On The Material) |
Power consumption | 400W |
Positioning mode | Blue Light Indication |
Marking Speed | ≤12000mm/s |
Questt QA-OFLM20 Fiber Laser Marking Machine is a great choice for a variety of uv laser engraving and marking tasks. This powerful machine has a maximum power consumption of 400W, and it can be powered by any 220V/50HZ power source. It also features a 10.2 inch touch controller, which provides easy operation and control. The marking range of QA-OFLM20 is 110mm×110mm, making it perfect for engraving small objects. It also has a production line speed of 0-130m/min, depending on the material being used for marking. This versatile machine is perfect for all types of laser engraving and marking tasks, including uv laser marking and fiber laser marking. With its powerful features and great design, the Questt QA-OFLM20 Fiber Laser Marking Machine is the perfect choice for any laser marking job.
We offer customized service for your UV Fiber Laser Marking Machine with the following specifications:
This UV Fiber Laser Marking Machine is a perfect choice for your marking needs, especially when it comes to uv fiber lasers, fiber laser marking machines and uv laser marking machine prices.
We provide a variety of technical support and services for our Fiber Laser Marking Machine, including:
