Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt

Place of Origin Wuhan
Brand Name Questt
Certification ISO , CE , SGS
Model Number Rigid-FL500-3015
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 10 - 30 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2000 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 500W 1000W 3000 Watt Wavelength 1070nm
Material Metal Metal Thickness 0.1-25
Work Size 1300 X 2500 Mm Laser Fiber Laser
Certificate CE Warranty 2 Years
High Light

Sheet Metal Cutting Machine

,

Fiber Laser Cutting Machine

Leave a Message
Product Description

  Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt



Overview

Laser cutting type is classified into laser vaporization cutting, laser melting cutting, laser oxygen cutting, laser scribing and fracture control four. The criteria for measuring cutting technique includes cutting speed, cutting precision, stability and reliability, etc.

The design of our equipment is advanced and reasonable, durable and reliable.
All the key components have adopted international and domestic well known brand products, making the system more integrated,more accurate controlling, more stable running to satisfy cutting requirements of the carbon steel, stainless steel and various sheet metals. It is the ideal choice for thin sheet processing.



Rigid-FL500-1325 Fiber metal laser cutting machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, it is a special cutting machine, which is suitable for stainless steel, carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CYPCUT program can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convenient maintenance.





Advantages



1.Air-cooled can greatly save power consumption during work, save operating costs, and achieve maximum production efficiency.

2. The fiber laser adopts the modular and redundant design of the semiconductor. There is no optical lens in the resonant cavity. It does not require startup time. It has the advantages of no adjustment, maintenance-free, and high stability. It reduces the cost of accessories and maintenance time. This is unmatched by traditional lasers.

3. The output wavelength of the fiber laser is 1.064 micron, which is 1/10 of the CO2 wavelength. The output beam quality is good and the power density is high, which is very beneficial to the absorption of metal materials. It has excellent cutting and welding ability, so that the processing cost is lower.

4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6. Low maintenance: Fiber line transmission, no need reflect lens, save maintenance cost;

7. Easy operations: Fiber line transmission, no adjustment of optical path;

8. Super flexible optical effects: Compact design, compact and easy to flexible manufacturing requirements.



Parameters



Laser output power 500W/1000/2000/3000W
Laser wavelength 1070 nm
Laser medium Glass fiber with rate-earth element
Max cutting speed 18m/min
Max cutting thickness 3-6mm according to material
Output energy regulating 10%~100%
Input electric power for laser ≤2KW
Type of cooling Water cooling
Drive mode Imported servo motor
Transmission mode Imported high precision Rack and Pinion
Max-range for cutting 3000mm×1500 mm/ 4000x2000mm
Power supply 380V/50HZ
Contour dimension 4270mm×2420 mm×1750 mm





Applications


The laser cutter bed is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing, and other manufacturing and processing industries.



Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt 0



Samples



Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt 1

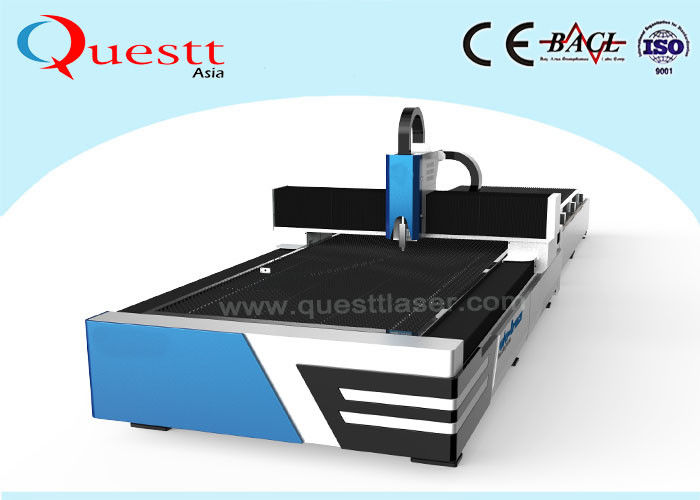

Machine outlook



Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt 2





FAQ



1.Q:What is the warranty of the laser cutting machine?

A:Questt Lasers have a warranty for 2 years.

2.Q:Are you a factory or trading company?

A:Quesstt Lasers is a factory for 22 years.

3.Q:How about the quality?

A:Quesstt Lasers Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

6.Q:How can i get assurance of my Payment?

A:Alibaba have Trade Assurance,you can pay throught Alibaba first.



Working video:

Steel Sheet Mini Cnc Laser Metal Cutting Machine 500W 1000W 3000 Watt 3
