Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Continuous Fiber Laser | Wavelength | 1080nm |
|---|---|---|---|
| Laser Power | 1000W-3000W | Cooling | Water Cooled |
| Frenquency | 1-50HZ | Power Supply | 220V 50HZ |
| GW | 120kgs | ||
| High Light | Three In One Laser Machine 1000W,Fiber Welding Laser Cutter 1080nm |
||
Product Description

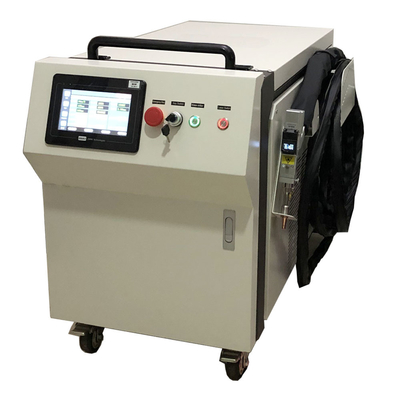

Three in One Laser Machine for Cleaning 1000W Fiber welding laser cutter
Introduction
QA-FL1000M three in one laser machine can do cutting,welding and cleaning 3 different jobs. Just need to exchange the laser head.
3 in 1 laser machine adopts a continous fiber laser source, with long lifetime up to 100,000 hours. Laser power can choose from 1KW to 3KW
We customize with a small cabinet, which can save much air shipping cost with samller package.
The laser head adopts water-cooled design, it won’t get over-heated during welding and cutting, small diameter, easy for hand-holding.
We also add a wire feeding machine, for steady welding with big seam.
For cutting function, same system and head as welding.
For cleaning function,need to change to cleaning system mode, the head also need to change to cleaning Focus lens and head.
This machine is perfect for metal process factory, who will need welding, cutting and cleaning jobs. One machine will do all these jobs.
I will save money to buy 3 machines.
Features
1. Small cabinet with light weight
2. Has 3 diferent functions
3. Save money for shipping
4. Fast process speed
5. Cheap price with CW laser source
6. Easy exchange laser heads
Specification
Model | QA-FL1000M | QA-FL1500M |
Average output power | 1000W | 500W |
Operation Mode | CW/Modulate | |
Max Modulation Frequency | 5KHz | |
Output Power Stablility | <3% | |
Red Laser | Yes | |
Terminal Type | QBH | |
Beam Quality | 1.3M2 | 1.5M2 |
Polarization | Random | |
Delivery Cable Length | 10M | |
Power Supply | 1 PH 220V three wires | |
Control Mode | RS232/AD | |
Power Consumption | 4KW | 5KW |
Cooling | Water Cooled | |
Operation Temperature | 10-40 degree | |
Max Depth of welding | 3mm | 4mm |
Machine Weight | 120/130Kg | |
Application
Laser welding, cutting and cleaning
FAQ
1 Q: What is the warranty of the three in one laser machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
