Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter

Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter

  • High Light

    Three In One Laser Machine 1000W

    ,

    Fiber Welding Laser Cutter 1080nm

  • Laser Type
    Continuous Fiber Laser
  • Wavelength
    1080nm
  • Laser Power
    1000W-3000W
  • Cooling
    Water Cooled
  • Frenquency
    1-50HZ
  • Power Supply
    220V 50HZ
  • GW
    120kgs
  • Place of Origin
    Wuhan
  • Brand Name
    Questt
  • Certification
    CE ISO FDA
  • Model Number
    QA-FL1000M
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Wooden cases
  • Delivery Time
    3-30 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    9988 sets / year

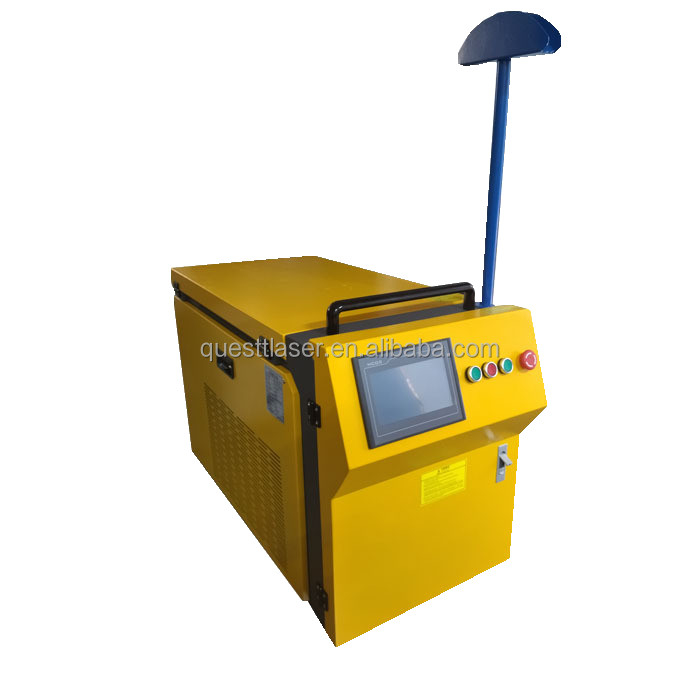

Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter

Three in One Laser Machine for Cleaning 1000W Fiber welding laser cutter

Introduction

QA-FL1000M three in one laser machine can do cutting,welding and cleaning 3 different jobs. Just need to exchange the laser head.

3 in 1 laser machine adopts a continous fiber laser source, with long lifetime up to 100,000 hours. Laser power can choose from 1KW to 3KW

We customize with a small cabinet, which can save much air shipping cost with samller package.


The laser head adopts water-cooled design, it won’t get over-heated during welding and cutting, small diameter, easy for hand-holding.
We also add a wire feeding machine, for steady welding with big seam.

For cutting function, same system and head as welding.

For cleaning function,need to change to cleaning system mode, the head also need to change to cleaning Focus lens and head.
This machine is perfect for metal process factory, who will need welding, cutting and cleaning jobs. One machine will do all these jobs.

I will save money to buy 3 machines.

Features

1. Small cabinet with light weight

2. Has 3 diferent functions

3. Save money for shipping
4. Fast process speed
5. Cheap price with CW laser source

6. Easy exchange laser heads



product-QUESTT-img



Specification


Model

QA-FL1000M

QA-FL1500M

Average output power

1000W

500W

Operation Mode

CW/Modulate

Max Modulation Frequency

5KHz

Output Power Stablility

<3%

Red Laser

Yes

Terminal Type

QBH

Beam Quality

1.3M2

1.5M2

Polarization

Random

Delivery Cable Length

10M

Power Supply

1 PH 220V three wires

Control Mode

RS232/AD

Power Consumption

4KW

5KW

Cooling

Water Cooled

Operation Temperature

10-40 degree

Max Depth of welding

3mm

4mm

Machine Weight

120/130Kg


Application
Laser welding, cutting and cleaning
                                    Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter 1


FAQ



1 Q: What is the warranty of the three in one laser machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.

3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
Three In One Laser Machine 1000W For Cleaning Fiber Welding Laser Cutter 2
