High Speed Cnc Fiber Laser Cutting Machine

Place of Origin China
Brand Name Questt
Certification ISO , CE , SGS
Model Number FL1000-1325
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 7 - 33 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 sets / year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 1000Watt Wavelength 1070nm
Material Metals Work Size 1300 X 2500 Mm
Laser Fiber Laser Service Offer Oversea Service
High Light

Sheet Metal Cutting Machine

,

Fiber Laser Cutting Machine

Leave a Message
Product Description

CNC Laser Metal Cutting Machine For SS Brass High speed laser cutter

Overview

FL1000B-1325 CNC Laser Metal Cutting Machine integrates optical, mechanical and electrical in one system which adopts latest laser technology, CNC control technology and high-performance laser power system to process all kinds of metal sheets with high speed and efficiency.

Laser cutting machine is one of the most common laser processing equipment.Laser cutting type is classified into laser vaporization cutting, laser melting cutting, laser oxygen cutting, laser scribing and fracture control four. The criteria for measuring cutting technique includes cutting speed, cutting precision, stability and reliability, etc.

The design of our equipment is advanced and reasonable, durable and reliable. All the key components have adopted international and domestic well known brand products, making the system more integrated,more accurate controlling, more stable running to satisfy cutting requirements of the carbon steel, stainless steel and various sheet metals. It is the ideal choice for thin sheet processing.

Advantages

1. Fast speed: 50M/min, two driver, synchronous high speed movement;

2. Leapfrog cutting: Improve the cutting speed, processing efficiency and accuracy;

3. Cutting and marking functions: Power can be controlled set with two layers, one cut and another mark, you can cut and mark together on one metal part;

4. Automatic search edge function: If metal sheet put slanting, machine can auto detect, and auto adjust cutting, less waste and no need to replace material;

5. Power off cutting memory: When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point;

6. Install Proportional Valve: Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;

7. Stable working table: Use 8mm thick steel side board, around 3.5 tons in weight;

8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;




Parameters


Laser output power500W/1000/2000/3000W
Laser wavelength1070 nm
Laser mediumGlass fiber with rate-earth element
Max cutting speed18m/min
Max cutting thickness3-6mm according to material
Output energy regulating10%~100%
Input electric power for laser≤2KW
Type of coolingWater cooling
Drive modeImported servo motor
Transmission modeImported high precision Rack and Pinion
Max-range for cutting3000mm×1500 mm/ 2500x1300mm
Power supply380V/50HZ
Contour dimension4270mm×2420 mm×1750 mm



MaterialCutting Thickness(mm)Cutting Maximum Speed (m/min)GasNotes
Mild Steel0.518OxygenSpeed reduce 20% when using Air
112
1.56
24
33
42
51.1
60.9
80.7
Stainless Steel0.518Nitrogen
110
26
33
50.7



Support

Pre-sale service:
Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.

Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

After-sale service:

Training to install:
Option A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting

Option B. You can come to Questt factory for training. Questt will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 7 working days

Option C. Our engineer will do a onsite instruction training service at your site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before dispatch. It is better to arrange a translator for both of our engineer during the training period. Training Time: 7 days

Samples

High Speed Cnc Fiber Laser Cutting Machine 0

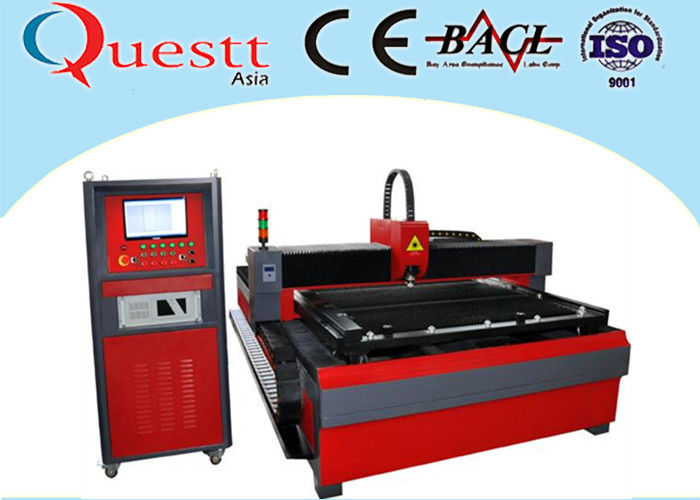

Machine outlook

High Speed Cnc Fiber Laser Cutting Machine 1
