1000W Handheld Laser Cleaner Gun High Effecient CE Rust Removal Lazer
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Power | 1000 Watt | Beam Width | 10-100mm |
---|---|---|---|
Laser Source | Fiber Laser | Service | Online And Overseas Service |
Speed | 0-10000mm/min | Weight | 35kg |
Color | Customized | ||
High Light | laser rust and paint remover,laser rust removal equipment |

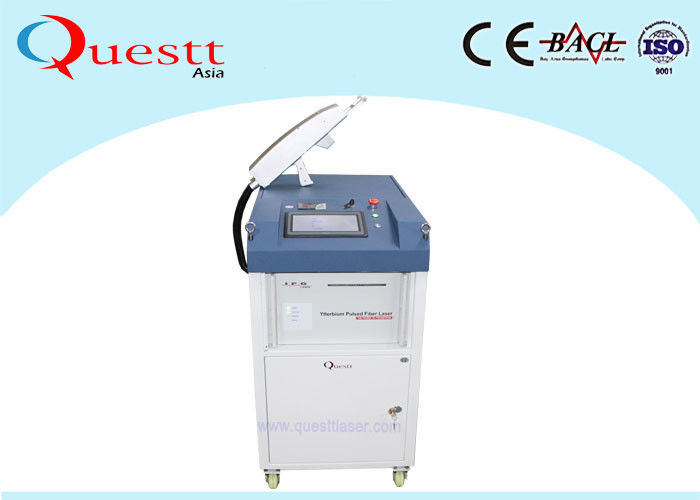

1000W Handheld Laser Cleaner Gun High Effecient CE Rust Removal Lazer
Description:
Laser cleaning equipment is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process. It can be customized according to customer requirements to develop a dedicated cleaning system. Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc
Product features:
1. Laser cleaning has no grinding, non-contact, no thermal effect and suitable for various materials, etc.
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;
3. No damage to substrate;
4. High cleaning precision, strong control ability
5. Can be used for a long time, low operating costs;
6. The device can realize automatic operation and simple operation;
7. Environmentally friendly, no supplies, no two pollution
Technical data:
Model | QA-LC50 | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC1000 |
Laser source | Fiber | Fiber | Fiber | Fiber | Fiber |
Laser Power | 50W | 60W | 100W | 200W | 1000W |
Laser Wavelength | 1060nm | 1060nm | 1060nm | 1060nm | 1064nm |
Pulse frequency | 20-100KHz | 20-100KHz | 20-100KHz | 20-100KHz | 20-500kHZ |
Cooling | Air | Air | Air | air | Water chiller |
Dimension | 760*780*790mm | 800*450*1000mm | 900x800x1300mm | ||
Weight30 | Kg | 40Kg | 40Kg | 90Kg | 300kgs |
Scanner width | 10-110mm | 10-110mm | 10-110mm | 10-170mm | 10-170mm |
Optional | Manual/Automation/Customers | ||||
Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40℃ |
Contaminant
The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants
Application scope:
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.
FAQ:
1 Q: What is the warranty ?
A: 2 yearwarranty and whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service for little problems, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
