Portable Jewelry Laser Welding Machine 150W Micro Laser Soldering Machine

Place of Origin China
Brand Name Questt
Certification CE,ISO
Model Number Robot150J
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood cases
Delivery Time 10 days
Payment Terms T/T, Western Union,, L/C
Supply Ability 3500 sets / year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Energy 80J Services Engineer Overseas Service
Lasre Power 150W Laser Wavelength 1064nm
Power Supply 220V 50HZ Welding Materials Metal
Warranty 2 Year Lifetime 100,000hours
High Light

Portable Laser Welding Machine

,

Gold Laser Welding Machine

Leave a Message
Product Description

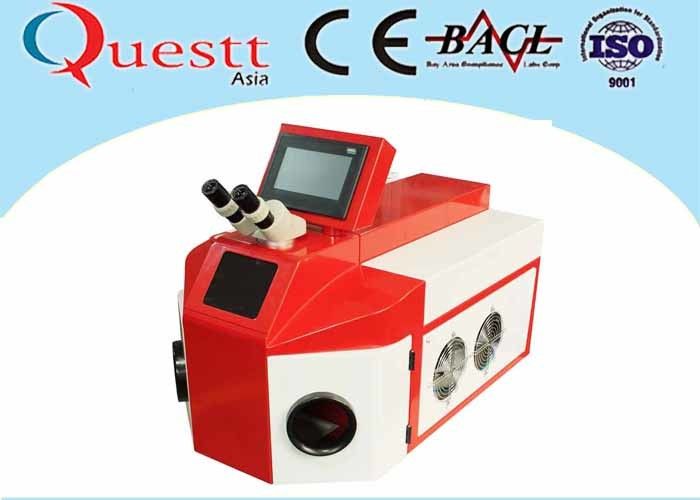

         Portable Jewelry Laser Welding Machine 150W Micro Laser Soldering Equipment





Machine overview



Robot150 portable Laser welding Machine is a desktop type laser soldering machine system, it can weld and repair almost all kinds of metal materials.

This laser welder is specially design for jewelry, like gold, silver etc.



The observing system is equipped with 10X microscope to observe with cross.

It has high speed electron flitting device to protect the operator's eyes from being hurt. Also it can see the welding point very clearly from the microscope. Make sure you can soldering the slit products acurately.

The processing type of the laser welder is heat transmission, processing work pieces surface by laser radiation , heat transmit from surface to bowel, by controlling laser width, energy, top power and repitition frequency to melt workpieces , form a special melting pool.





Features

Easy to move and place on table

2 Take very samll space

3 High precision with 10X microscope observation

4 Lifetime of condensation cavity is up to 8-10 years

5 High quality imported lens and reflection mirrors.


Specification data



type Robot150J
Output laser power 150W
Energe 80J
Wave length 1064nm
Laser power supply 2.5 KW
Laser welding minimum melt pool 0.1mm
Laser pulse frequency ≤50Hz
Laser pules width ≤20ms
Port adjusting scope 0.1~3.0mm
Port size 0.2~3.0mm
Protective gas yes (N2)
Power demand 220V one-phase/50Hz/20A



Applications



Jewelry, golf head, medical equipment, instrumentation, electronic, mechanical processing, auto industries, the material can be titanium, Nickel, Aluminum, Stainless steel, Gold, Argentine, Copper, Platinum.

Portable Jewelry Laser Welding Machine 150W Micro Laser Soldering Machine 0



FAQ



1 What is the payment terms?

T/T , L/C, Westen Union,Paypal

2 What is the after-sale services?

Overseas service available.

3.What is the warranty of the laser welding machine ?

12 month , but whole life service.





Machine details



Portable Jewelry Laser Welding Machine 150W Micro Laser Soldering Machine 1

Portable Jewelry Laser Welding Machine 150W Micro Laser Soldering Machine 2
