6 Axis Industrial Robotics Automation Collaboration Robot Human Touch Arm Length 924mm

Place of Origin China
Brand Name QUESTT
Certification ISO CE
Model Number MR5
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Wooden case
Delivery Time 10 - 30 days
Payment Terms T/T, Western Union, L/C
Supply Ability 6000 sets each year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Welding/cutting/picking Up Arm Length 924mm
Axis 6 Axis Warranty 12 Month
Payload 5kg Service Oversea Service Available
Human Touch OK During Working
High Light

robotic welding systems

,

industrial automation robotics

Leave a Message
Product Description



6 axis Industrial Collaboration Robot 5kg Payload Human Touch Arm length 924mm

Introduction

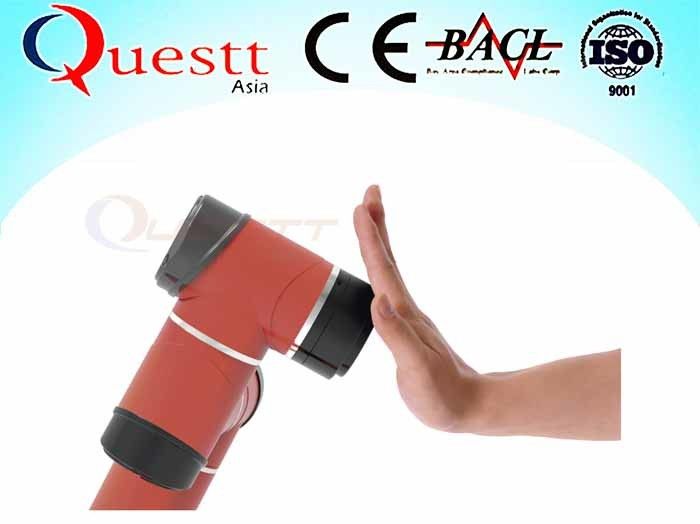

MR-5 is a industrial collaboration robot. It is a new robotic arm which is safe to work with humans. You can touch the robot during working. Much safer than other normal robots.



This robot is in small size with light weight,which is dedicated to arc welding robot, can realize the stable welding, obtain high precision welding path, shorten the welding cycle, extend the life of the pipe and cable at the same time SA series welding robot can flexible welding operations within the narrow space, can easily choose the ground installation mount inversion



Advantage



1. Stability and improve quality, ensure its homogeneity;

2. Improve productivity, available 24 hours a day continuous production;

3. Improving labor conditions, long-term work in a hazardous environment;

4. Reduce the operation technique requirements;

5. Reduce product modification replacement cycles, reduce investment in appropriate equipment;

6. Realization of welding automation of batch products;

7. Save floor space in factory;

8. Sate to work with hanman during working.



Specification

Model MR-5
Payload 5 KG
Arm Length 924 mm
Number of Axis 6





Max speed

Axis1 150 °/S
Axis2 150 °/S
Axis3 150 °/S
Axis4 180 °/S
Axis5 180 °/S
Axis6 180 °/S







Max Operation Area

Axis1 ±175°
Axis2 ±175°
Axis3 ±175°
Axis4 ±175°
Axis5 ±175°
Axis6 ±175°
Weight 24kg
Liner speed 2.8 m/s
Power consumption 200 W
Input voltate DC 48 V
IP Classification of Robot IP54
Position Repeatability 0.02 mm
Working temperature 0-45 ℃



Application



Application:

Collaboration robots are ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.





Using in factory

6 Axis Industrial Robotics Automation Collaboration Robot Human Touch Arm Length 924mm 0



Robot Overlook

6 Axis Industrial Robotics Automation Collaboration Robot Human Touch Arm Length 924mm 1

FAQ



1 Q: What is the warranty?

A: The warranty is 1 year.



2 Q: Are you a factory or trading company?

A: We are factory over 20 years.



3 Q: What is the service

A: Engineer offer oversea service and we offer online service for small problems



4 Q: Can we customize as special needs?

A: Yes .



5 Q: What is the payment terms?

A: T/T, LC, Westen Union etc.
