Bluetooth Remover Rust Paint Portable Laser Cleaning Systems On Ship / Railway / Automobile / Wall
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 20-1000 Watts | Application | Laser Rust Removal |
|---|---|---|---|
| Laser Source | Fiber Laser | Service | Online And Overseas Service Is Available |
| Warranty | 12 Months | Speed | 7000 Mm/min |
| Material | Metal / Coil | Condition | New |
| Laser Wavelength | 1064nm | Cooling Method | Air Cooling/Water Cooling |
| High Light | laser rust removal equipment,laser cleaning machine |
||
Product Description

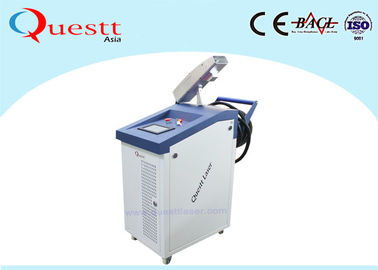

Bluetooth Laser Rust Removal Machine , Oxide Coating Laser Optic Rust Removal
Description:
QA-LC200 is a 200W Mopa fiber laser cleaning machine for rust/paint removal.
Laser rust removal using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.
Product features:
1. Rapid, clean, accurate cleaning;
2. No damage to the substrate processing equipment;
3. laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the environment.
4. it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;
5. the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;
Comparison with Traditional Clean Method:
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operations | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investments | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Specifications:
QA-LC200 Laser Cleaning Machine for rust removal.p...
Introduction Laser Cleaning Machine Detailed.pdf
| Model | QA-LC50 | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC1000 |
| Laser source | Fiber | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 50W | 60W | 100W | 200W | 1000W |
| Laser Wavelength | 1060nm | 1060nm | 1060nm | 1060nm | 1064nm |
| Pulse frequency | 20-100KHz | 20-100KHz | 20-100KHz | 1-2000KHz | 2-50kHZ |
| Cooling | Air | Air | Air | air | Water chiller |
| Dimension | 760*780*790mm | 800*450*1000mm | 950x880x1200mm | ||
| Weight30 | Kg | 40Kg | 40Kg | 90Kg | 300kgs |
| Scanner width | 10-110mm | 10-110mm | 10-110mm | 10-170mm | 10-170mm |
| Optional | Manual/Automation/Customers | ||||
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40℃ |
Principle:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition
Application field:
Metal workpiece laser paint removal, laser removal of zinc and film, laser coating removal,
widely used in automobile manufacturing, medical, military, aerospace, mold, microelectronics, construction, nuclear power plants, etc.
Sample details:
FAQ
1 Q: What is the warranty ?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
