Portable Laser Rust Remover Machine For Cleaning Graffiti Oil Car Restoration

Place of Origin Wuhan, China
Brand Name QUESTT
Certification ISO CE
Model Number QA-LC200
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 15 days
Payment Terms T/T, L/C, Western Union
Supply Ability 2900 sets per year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 200 Watt Beam Width 10-170mm
Laser Source Fiber Laser Service Online And Overseas Service
Speed 0-10000mm/min Weight 90kg
Warranty 2 Years
High Light

laser rust removal equipment

,

laser cleaning machine

Leave a Message
Product Description

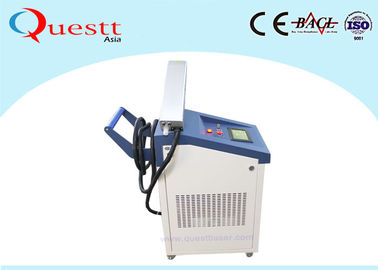

Portable Laser Rust Remover Machine For Cleaning Graffiti Oil Car Restoration



Description:



QA-LC200 is a 200W portable hand held laser rust removal machine.



There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.



Comparison with Traditional Clean Methods:



Comparison Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Washing Method non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Washing Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.



Product features:

1 Laser cleaning is universally acknowledged as the most reliable and effective solution for all materials with features of non-contact, no grind and no heat effect.

2 Laser power from 30-1000 W for different laser cleaning applications High efficient clean speed of4m'-40m /h Accurate cleaning for exact position and precise size Widely applied in flat, curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.

3 Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand- held laser cleaning head

4 No maintenance and no consumables Dust-free, no chemicals, no pollution Non-contact cleaning and no damage for substrate Extremely low cleaning cost and High cleaning efficiency



Specifications:

Introduction Laser Cleaning Machine Detailed.pdf

QA-LC100 Laser Cleaning Machine for rust removal.p...


Model

QA-LC50

QA-LC100

QA-LC200

QA-LC500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

50W

100W

200W

500W

Fiber cable L

3 M

5 M

5 M

15M

Pulse Energy

1 mJ

1.5 mJ

3 mJ

100 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

50-500KHz

1-2000KHz

1-2000KHz

10-50KHz

Clean speed

≤5 M²/Hour

10 M²/Hour

≤15 M²/Hour

≤60 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Water cooling

Water cooling

Dimension

450*350*500

500*400*550

800*450*1000

900*800*1300

Weight

30Kg

40Kg

90Kg

220Kg

Beam width

10-110mm

10-110mm

10-170mm

10-170mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ









Portable Laser Rust Remover Machine For Cleaning Graffiti Oil Car Restoration 0







Application scope:

Laser cleaning is universally acknowledged as the most reliable and effective solution for all materials with features of non-contact, no grind and no heat effect.

Laser power from 20-1000 W for different laser cleaning applications High efficient clean speed of 4m'-40m /h Accurate cleaning for exact position and precise size Widely applied in flat, curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.

Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand- held laser cleaning head

No maintenance and no consumables Dust-free, no chemicals, no pollution Non-contact cleaning and no damage for substrate Extremely low cleaning cost and High cleaning efficiency



Rust removal:

High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.





FAQ:



1 Q: What is the warranty of the laser rust removal machine?

A: 2 years` warranty and whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service for little problems,

using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.

We offer operation manual and videos, show you how to operate the machine.
