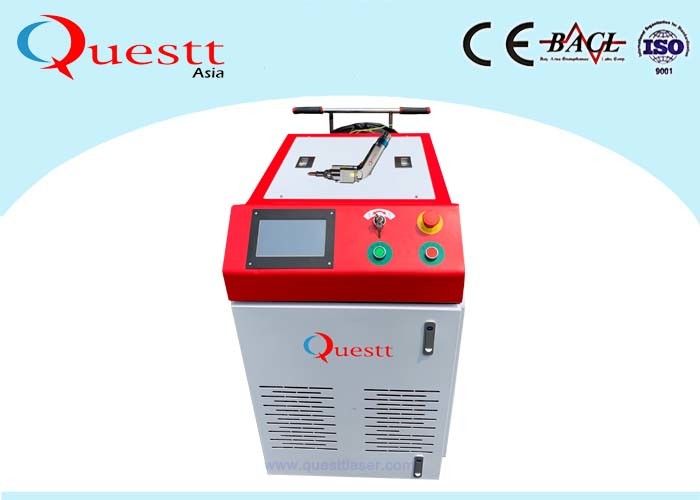

Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power

China Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power supplier
Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power supplier Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power supplier

Large Image :  Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power

Product Details:

Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-LW1000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood cases
Delivery Time: 9 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8800 sets / year
Contact Now
Detailed Product Description
Laser Type: Fiber Laser Laser Source: Raycus
Wavelength: 1064nm Laser Power: 500W/1000W
Welding Wire: 0.1-2mm Welding Frenquency: 1-50HZ
Power Supply: 380V 50HZ GW: 200kgs



Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power



Introduction

Handheld fiber laser welding machine adopts a continous fiber laser source, with long lifetime up to 100,000 hours.

The laser power range from 300-2000W

It is an ideal for continous welding, seam welding & drilling in the long pulse operation mode.

The fiber lasers are available for requalifying existing lamp-pumped processes at the application facilities and applications labs.

It is an important aspect of laser process technology application.

Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

The laser welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.



Features

1.Its control system,laser system and cooling system are all bulit-in and intergrated

2.Handheld holding welding head is easily operated ,pciking and moving.

3.Using the fiber laser source,the laser beam quality is quite good,and its output power is stable which can assure the high welding performance.

4. Human-based design accords with ergonomics, avoiding fatigue after long time working.
5. High speed, high efficiency, slightly deformation, small heat effect area, high welding quality, pollution free, environmental friendly.

6.It costs very low working consumption,Using laser machine one hour only consume 1-1.5 degree electrictiy,and weld all kinds of thin metal plates.

7.It can weld a wide range of metal ,includes the stainless steel,carbon steel,cooper,aluminum alloy,Zinc plated board.

8.No deformation,small thermal effect. Very nice welding performance.



Specification



Model

QA-FL1000W

QA-FL500W

Average output power

1000W

500W

Operation Mode

CW/Modulate

Max Modulation Frequency

5KHz

Output Power Stablility

<3%

Red Laser

Yes

Terminal Type

QBH

Beam Quality

1.3M2

1M2

Polarization

Random

Delivery Cable Length

20M

Power Supply

3 PH 380V five wire connect

Control Mode

RS232/AD

Power Consumption

4KW

3KW

Cooling

Water Cooled

Operation Temperature

10-40 degree

Max Depth of welding

2mm

1.5mm

Machine Weight

200Kg



Application

Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries

Cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc
Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum



Welding sample

Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power





Machine outlook

Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power



FAQ



1 Q: What is the warranty of the fiber laser welding machine?

A: The warranty is 2 year.



2 Q: Are you a factory or trading company?

A: We are factory for 22 years.



3 Q: What is the service

A: Engineer offer oversea service and we offer online service for small problems



4 Q: Can we customize as special needs?

A: Yes you can.



5 Q: What is the payment terms?

A: T/T, LC, etc.





Hand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong PowerHand Held Fiber Laser Welding Machine For Metal Cabinet Fast Soldering With Strong Power
