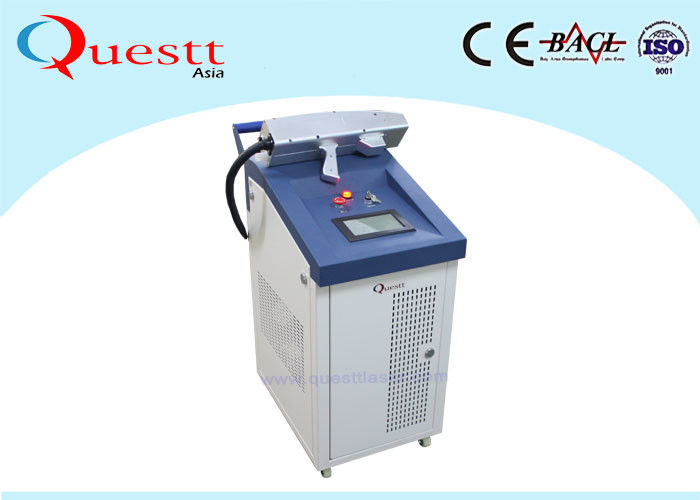

50W 500W Laser Metal Cleaning Machine , Laser Surface Cleaning Machine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Laser Power||20-1000 Watt||Application||Surface Clean With Laser|
|Laser Source||Fiber Laser||Service||Online And Overseas Services|
|Warranty||2 Years||Material||Metals / Nonmetals|
|Cooling Method||Air Cooling/Water Cooled||Fuel||Electric|
laser rust removal equipment,
laser cleaning machine
Graffiti Clean Laser Rust Removal Machine for Metal/Wood/Ceramic Paint Coating 200W
Easy to operate, handheld,also can be automatic.
Achieved cleaning without chemical reagent, medium, dusty and water, and the surface cleaning effect is quite good.
Can remove the resin, grease, stains, dirt, embroidered turbidity,coating, paint from the products surface.
QA-LC200 equipped with a 200W Mopa fiber laser source, the pulse width can be adjusted from 1-400ns, so it can make precision cleaning, like mold and mirror stainless steel.
Laser rust removal using laser high energy, high frequency, high power characteristics, the high energy instantly deposited in a small area, the use of high-temperature oxidation of the oxide layer.
Small area cleaning and paint removal treatment, welding surface pretreatment, food line cleaning, printing wheel cleaning, precise position/size paint treatment, restoration of monuments, rust/oxide removal;
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
New welding point Preparation, metal surface roughness, rapid dust/oxide, oil, grease and production residues; industrial, military and shipbuilding industry-product coating high-speed cleaning, NDT welding inspection coating cleaning;
1. Fast and concentrated pulses (1/10000 second) with enormous power (well dozens of of Mio. W) impact and gasification of residues on the surface;
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Pollution-free: It is easy to solve the environmental pollution problems caused by chemical cleaning without using any chemical agents and cleaning liquid.
5. Expansibility: changeable focus lens, changing focus depth, wider range of laser cleaning beam.
6. No damage to the base material;
Comparison with traditional cleaning methods:
|Comparisons||Laser Cleaning||Chemical Cleaning||Mechanical Grinding||Dry ice cleaning|
|Methods||non-contact cleaning||contact cleaning||Abrasive contact cleaning||non-contact cleaning|
|Harm to base material||None||Yes||Yes||None|
|Consumable||Power||Chemical Detergent||Abrasive paper, grinder, abrasive stone||Dry Ice|
|Washing result||Very good, very clear||Medium, uneven||Medium, uneven||Good, uneven|
|Precision Washing||Accuracy controllable. High precision||Uncontrollable, low precision.||Uncontrollable, medium precision.||Uncontrollable, poor precision.|
|Safety/Environment||No pollution||Chemical pollution||Dust pollution||No pollution|
|Operation||Easy to operate, portable or automation optional.||Complicated process, higher technical requirement of the operator. Pollution prevention measures required.||Need more time & manpower. Pollution prevention measures required.||Easy to operate, portable or automatic.|
|Investment||High investment on machine. But no consumable, low maintenance cost||Low investment on machine. But expensive consumables||Medium investment on machine. High man-power cost.||Medium investment on machine. High consumable cost.|
QA-LC200 Laser Cleaning Machine for rust removal.p...
Introduction of Laser Cleaning Technology A.pdf
|Temperature||5-40 ℃||5-40 ℃||5-40 ℃||5-40 ℃||5-40℃|
Components combination, welding surface pretreatment, metal surface stripping (all surface paint or designated parts off paint) and a variety of industrial products or molds cleaning
High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.
1 Q: What is the warranty of this laser rust removal machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is the after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the laser cleaning machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
5 Stars Review from customer, really high quality:
