Product Details
Place of Origin: Wuhan City,China
Brand Name: QUESTT
Certification: CE FDA
Model Number: QA-LC300
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 18 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1890 sets per year
Laser Power: |
20-1000 Watt |
Application: |
Surface Clean With Laser |
Laser Source: |
Fiber Laser |
Service: |
Online And Overseas Services |
Warranty: |
2 Years |
Material: |
Metal / Coil |
Condition: |
New |
Laser Wavelength: |
1064nm |
Cooling Method: |
Air Cooling/Water Cooled |
Fuel: |
Electric |
Laser Power: |
20-1000 Watt |
Application: |
Surface Clean With Laser |
Laser Source: |
Fiber Laser |
Service: |
Online And Overseas Services |
Warranty: |
2 Years |
Material: |
Metal / Coil |
Condition: |
New |
Laser Wavelength: |
1064nm |
Cooling Method: |
Air Cooling/Water Cooled |
Fuel: |
Electric |
Laser Cleaning Machine For Oxide / Coating / Roof / Graffiti / Corrosion / Rust Remover
Description:

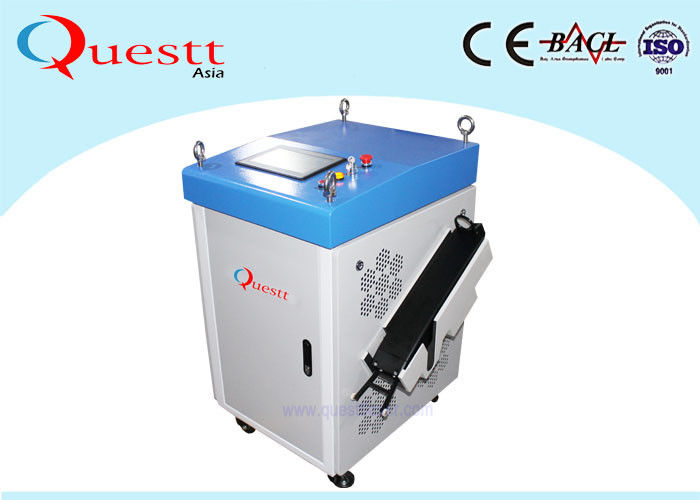

QA-LC300 is a middle power laser cleaner which equipped with a 300W Mopa fiber laser source.
The pulse width can be adjusted , so that it can make precision cleaning, like plastic injection mold ,autombile plastic mould and stainless steel without damage the surface.
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted.
So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.
Achieved cleaning without chemical reagent, medium, dusty and water, and the surface cleaning effect is quite good.
Can remove the resin, grease, stains, dirt, embroidered turbidity,coating, paint from the products surface.
Product features:
1. The impact of a short period of time will not cause metal surface heating,
2. Pollution-free;
3. Expansibility: changeable focus lens, changing focus depth, wider range of laser cleaning beam.
4. No damage to the base material;
5. Different languare to choose from;
6. Laser pulses are very suitable for the removal of organic matter.
7. Phone App controller with time counter
Comparison with traditional cleaning methods:
| Comparisons | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Methods | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Specifications:
QA-LC200 Laser Cleaning Machine for rust removal.p...
Introduction of Laser Cleaning Technology A.pdf
| Model | QA-LC50 | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 50W | 60W | 100W | 200W | 500W |
| Laser Wavelength | 1060nm | 1060nm | 1060nm | 1060nm | 1064nm |
| Pulse frequency | 20-100KHz | 20-100KHz | 20-100KHz | 1-2000KHz | 2-50kHZ |
| Cooling | Air | Air | Air | air | Water chiller |
| Dimension | 760*780*790mm | 800*450*1000mm | 950x880x1200mm | ||
| Weight | 30Kg | 40Kg | 40Kg | 90Kg | 200kgs |
| Scanner width | 10-110mm | 10-110mm | 10-110mm | 10-170mm | 10-170mm |
| Optional | Manual/Automation/Customers | ||||
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40℃ |
Application field:
Space flight and aviation/ships, automobile/machine manufacturing, mould/hardware tool, food processing/chemical industry, rubber and plastic/tyre, electronics/electrical equipment, weaponry, building materials/cultural relic, steel structural parts, rail transit/machine tool, etc.
Removal for rust, oil stain, grease, dirt, resin, mold release, oil paint, coating, weld residue, oxide, production residue etc.
FAQ
1 Q: What is the warranty of this laser cleaning machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
