Poartable Clean Laser Machine 100W Backpack Laser Rust Removal

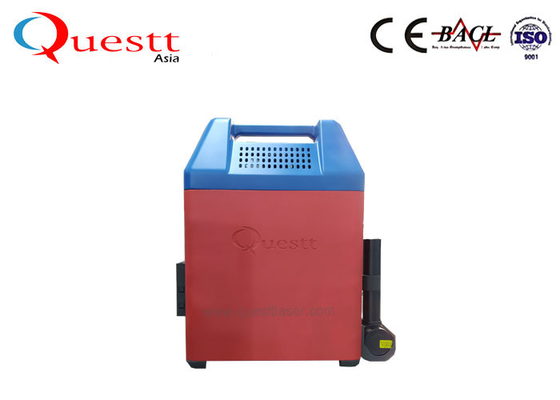

                   100W Backpack Laser Rust Removal Machine for Cleaning outdoor



Description:

QA-LC100B is a backpack type laser rust removal machine for cleaning wrok outside, like on bridge, buliding walls, tower etc.

There is oxidation and corrosion when metals meet oxygen and water vapor in air.

It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.





Product features:

1. Different languages to choose;

2. Laser pulse width adjustable ;

3. Free to wrok outside;

4. No pollution;

5. Expansibility;

6. No damage to the substract;.

Specifications:

Laser Cleaning Machine Rust Removal.pdf



Model	QA-LC30B	QA-LC50B	QA-LC100B
Laser source	Fiber	Fiber	Fiber
Laser Power3	0W	50W	100W
Fiber cable length	2 meters	2 meters	2.5 meters
Laser Wavelength	1064nm	1064nm	1064nm
Pulse Energy	0.6 mJ	1 mJ	1.5 mJ
Pulse frequency	30-60KHz	1-2000KHz	1-2000KHz
Scanning speed	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling
Dimension	400*180*450 mm	400*180*450 mm	500*200*550 mm
Weight	18Kg	20Kg	36Kg
Beam width	10-70mm	10-70mm	10-100mm
Optional	Manual	Manual	Manual
Temperature	5-40 ℃	5-40 ℃	5-40 ℃
Voltage	Single Phase 220V, 50/60HZ	Single Phase AC 220V,2.5A	Single Phase AC 220V 4.5A



























































Application scope:

Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy

Especially designed for outside cleaning work, like graffiti on walls, rust on bridge, moss on sculpture etc.




FAQ



1 Q: What is the warranty of the backpack laser rust removal machine?

A: The warranty is 2 years, but we offer whole life after-sale service.

2 Q: What is your payment terms?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale services?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machines?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
