100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti

Product Details

Place of Origin: Wuhan, China

Brand Name: QUESTT

Certification: ISO CE

Model Number: QA-LC100B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Exporting Wooden Case

Delivery Time: 3-18 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 3888 sets per year

Get Best Price
Highlight:

Back Pack Laser Rust Remover Machine

,

100W Laser Rust Remover Machine

,

MOPA Laser Rust Remover

Laser Power:
100 Watts
Certificate:
CE Certificate
Beam Width:
110mm
Laser Source:
Mopa Fiber Laser
Service:
Online And Overseas
Speed:
0-7000mm/min
Laser Power:
100 Watts
Certificate:
CE Certificate
Beam Width:
110mm
Laser Source:
Mopa Fiber Laser
Service:
Online And Overseas
Speed:
0-7000mm/min
100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti

     100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti

100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti 0

Description:

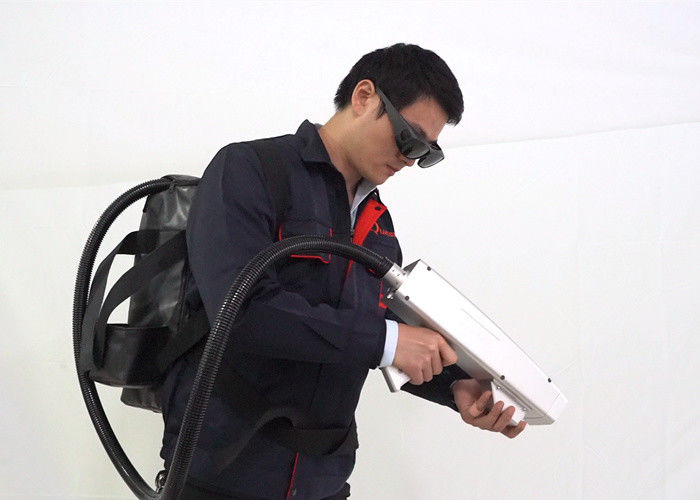

QA-LC100B is a backpack type laser clean rust removal machine, which adopt a 100W Mopa fiber laser source.

There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted.

So rust removal is extremely important. Backpack laser rust removal machine is specailly designed to clean such rust outside.



It is free to wrok outside and in air, like on bridge, buliding walls, tower etc.Easy to carry and operation, free to move anywhere you like.

For some outside cleaning job, it is not easy to carry a big machine with the operator. So backpack laser cleaning machine is the best choice.





Product features:

1. Free to wrok outside;

2. Laser pulses are adjustable;

3. Different languages to choose from;

4. Pollution-free;

5. Expansibility;

6. No damage to the base materials;.

7. Easy to operate,
8. Convenient to work in air on platform



Specifications:

Backpack Laser Rust Removal Machine HQ.pdf



Model QA-LC30B QA-LC50B QA-LC100B
Laser source Fiber Fiber Fiber
Laser Power3 0W 50W 100W
Fiber cable length 2 meters 2 meters 2.5 meters
Laser Wavelength 1064nm 1064nm 1064nm
Pulse Energy 0.6 mJ 1 mJ 1.5 mJ
Pulse frequency 30-60KHz 1-2000KHz 1-2000KHz
Scanning speed 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air cooling
Dimension 300*160*450 mm 300*160*450 mm 500*180*450 mm
Weight 18Kg 18Kg 20Kg
Beam width 10-70mm 10-70mm 10-100mm
Optional Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220V, 50/60HZ Single Phase AC 220V,2.5A Single Phase AC 220V 4.5A

























































100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti 1



Comparison with traditional cleaning methods:



Comparisons Laser Cleaning Chemical Cleaning Mechanical Grinding Dry ice cleaning
Methods non-contact cleaning contact cleaning Abrasive contact cleaning non-contact cleaning
Harm to base material None Yes Yes None
Efficiency High Low Low Mid.
Consumable Power Chemical Detergent Abrasive paper, grinder, abrasive stone Dry Ice
Washing result Very good, very clear Medium, uneven Medium, uneven Good, uneven
Precision Washing Accuracy controllable. High precision Uncontrollable, low precision. Uncontrollable, medium precision. Uncontrollable, poor precision.
Safety/Environment No pollution Chemical pollution Dust pollution No pollution
Operation Easy to operate, portable or automation optional. Complicated process, higher technical requirement of the operator. Pollution prevention measures required. Need more time & manpower. Pollution prevention measures required. Easy to operate, portable or automatic.
Investment High investment on machine. But no consumable, low maintenance cost Low investment on machine. But expensive consumables Medium investment on machine. High man-power cost. Medium investment on machine. High consumable cost.




Application scope:

Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning;

chip surface cleaning of micro electricy
100W BackPack MOPA Fiber Laser Rust Removal Machine for Cleaning Graffiti 2



FAQ



1 Q: What is the warranty of the backpack laser clean rust removal machine?

A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is your payment terms?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale services?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machines?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machines?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
