10000mm/min 50 Watt Backpack Laser Rust Cleaning Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 100W | Certificate | CE ISO SGS |
|---|---|---|---|
| Beam Width | 100mm | Laser Source | Fiber Laser Device |
| Service | Online And Overseas Service | Speed | 0-10000mm/min |
| Warranty | 2 Year | Outside Working | OK |
| High Light | Backpack Laser Rust Cleaning Machine,50 Watt Laser Rust Cleaning Machine,10000mm/min laser rust removal equipment |
||
Product Description

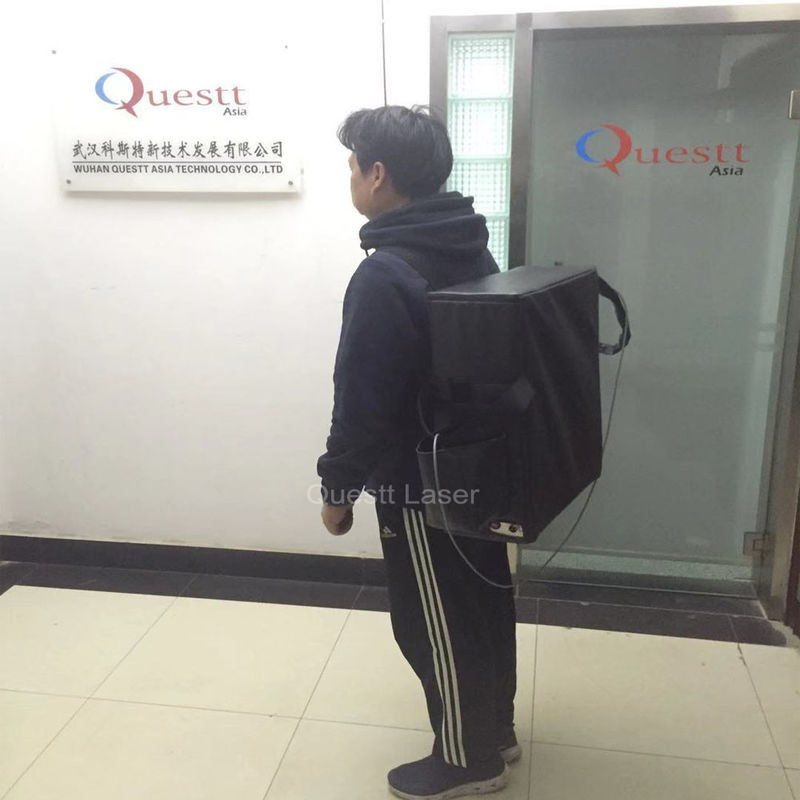

Rust Removal Surface portable 50w backpack laser rust cleaning machine
Description:
QA-LC100B is a backpack type laser rust removal machine for cleaning wrok outside, like on bridge, buliding walls, tower etc.
There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted.
So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. It has advantages of higher efficiency, high automation and no subsequent processing work, lower labor intensity and lower cost.
Product features:
1. Different languages to choose;
2. Laser pulse width adjustable ;
3. Free to wrok outside;
4. No pollution;
5. Expansibility;
6. No damage to the substract;.
7. Easy to operate,
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC30B | QA-LC50B | QA-LC100B |
| Laser source | Fiber | Fiber | Fiber |
| Laser Power3 | 0W | 50W | 100W |
| Fiber cable length | 2 meters | 2 meters | 2.5 meters |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Pulse Energy | 0.6 mJ | 1 mJ | 1.5 mJ |
| Pulse frequency | 30-60KHz | 1-2000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling |
| Dimension | 400*180*450 mm | 400*180*450 mm | 500*200*550 mm |
| Weight | 18Kg | 20Kg | 36Kg |
| Beam width | 10-70mm | 10-70mm | 10-100mm |
| Optional | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50/60HZ | Single Phase AC 220V,2.5A | Single Phase AC 220V 4.5A |
Application scope:
Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy
Especially designed for outside cleaning work, like graffiti on walls, rust on bridge, moss on sculpture etc.
FAQ
1 Q: What is the warranty of the backpack laser rust removal machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale services?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machines?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
