Automation Fiber Laser Cleaning Machine System With 6 Axis Robot
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Device | Fiber Source | Laser Power | 100-1000W |
|---|---|---|---|
| Laser Wavelength | 1064nm | Sevices | Wholelife Aftersale Service |
| Certificates | CE FDA | Warranty | 2 Years |
| Scanning Width | 10-160 Mm | Fiber Cable Length | 3-10 Meters |
| Robot | 6 Axis | Cleaning Type | Automation |
| High Light | Automation Fiber Laser Cleaner,6 Axis Robot Laser Rust Remover,220V Fiber Laser Cleaning Machine |
||
Product Description

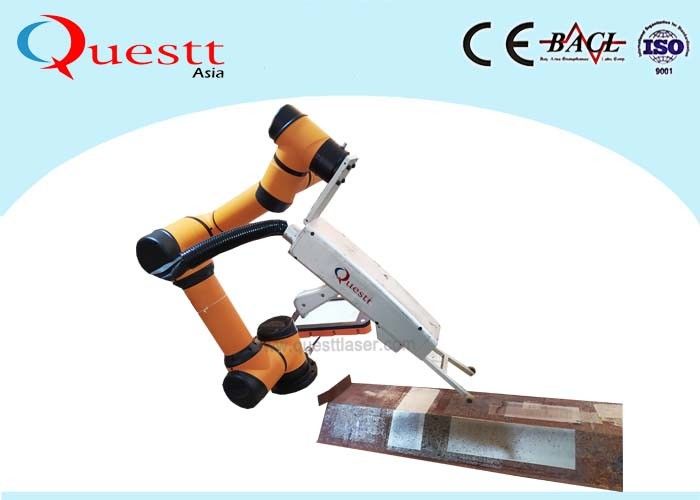

Automation Fiber Laser Cleaning Machine System with 6 Axis Robot
Description:
QA-LC100R Robot laser cleaning machine is our newest design for automation cleaning jobs.
It is a full automation cleaning system, which equipped with a 6 axis robot system and 100W laser cleaning system.
The cooling system is water cooled for laser head, add a dust connector to keep the workroom clean.
The laser cleaning head can be fix or designed as a hand held one.
The laser derusting machine can be customized according to customer needs.
The cleaning is efficient and got better result than manually cleaning.
Laser cleaning Machine is a new generation of surface cleaning of High-tech products. Easy to install, manipulate and automate. Simple operation, access to power, open equipment, you can carry out chemical reagents
Characteristic:
1. Phone App operation with bluetooth
2. Suitable for the removal of different materials ;
3. Free to wrok outside
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;.
7. Easy to operate,
8. 0.7kg light laser head
Specifications:
|
Model |
QA-LC60 |
QA-LC100 |
QA-LC300 |
QA-LC500 |
|
Laser source |
Fiber |
Fiber |
Fiber |
Fiber |
|
Laser Power |
60W |
100W |
300W |
500W |
|
Fiber cable L |
3 M |
3 M |
5 M |
20M |
|
Pulse Energy |
1.5 mJ |
1.5 mJ |
2 mJ |
50 mJ |
|
Wavelength |
1060nm |
1060nm |
1060nm |
1060nm |
|
Frequency |
1-2000KHz |
1-3000KHz |
1-3000KHz |
10-50KHz |
|
Clean speed |
≤5 M²/Hour |
≤10 M²/Hour |
≤25 M²/Hour |
≤50 M²/Hour |
|
Scann speed |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
0-7000mm/s |
|
Cooling |
Air cooling |
Air cooling |
Air cooling |
Water cooling |
|
Dimension |
650*250*560 |
900*450*980 |
900*450*980 |
1100*600*1100 |
|
Weight |
30Kg |
40Kg |
90Kg |
230Kg |
|
Beam width |
10-100mm |
10-100mm |
10-100mm |
10-100mm |
|
Optional |
Manual |
Manual |
Manual |
Manual |
|
Temperature |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
5-40 ℃ |
|
Voltage |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Single Phase 220V, 50HZ |
Robot system:
6 axis robot, can choose from different brands.
Specification
| Model | MR-5 | |
| Payload | 5 KG | |
| Arm Length | 924 mm | |
| Number of Axis | 6 | |
|
Max speed |
Axis1 | 150 °/S |
| Axis2 | 150 °/S | |
| Axis3 | 150 °/S | |
| Axis4 | 180 °/S | |
| Axis5 | 180 °/S | |
| Axis6 | 180 °/S | |
|
Max Operation Area |
Axis1 | ±175° |
| Axis2 | ±175° | |
| Axis3 | ±175° | |
| Axis4 | ±175° | |
| Axis5 | ±175° | |
| Axis6 | ±175° | |
| Weight | 24kg | |
| Liner speed | 2.8 m/s | |
| Power consumption | 200 W | |
| Input voltate | DC 48 V | |
| IP Classification of Robot | IP54 | |
| Position Repeatability | 0.02 mm | |
| Working temperature | 0-45 ℃ | |
Application scope:
The whole surface or the designated part of the paint off, the welding department to remove paint inspection, the removal of oxides, oil, grease and production residues;
FAQ
1 Q: What is the warranty of robot laser cleaning machine?
A: The warranty is 2 years. Offer wholelife aftersales service.
2 Q: What is your payment terms?
A: Any payment terms is acceptable.
3 Q: What is the service of your company?
A: Engineers can offer oversea services and online service.
4 Q: How is the operations?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.The operation is easy to learn.
5 Q: What is the brand of laser?
A: IPG laser.
