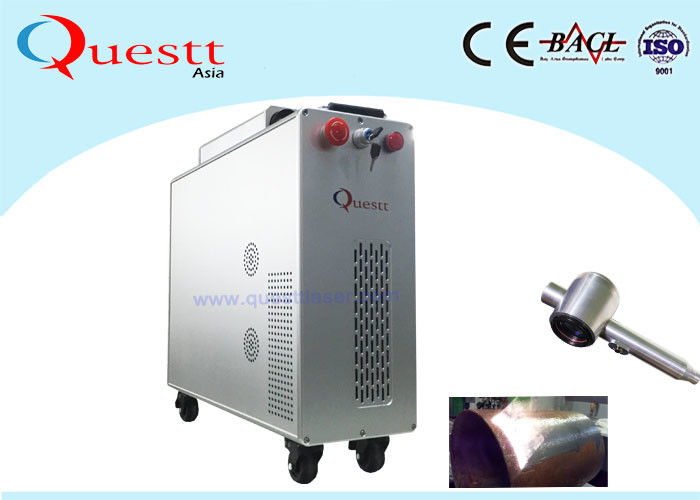

100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam

  • 100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam
  • 100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam
  • 100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam
Place of Origin Wuhan, China
Brand Name QUESTT
Certification ISO CE
Model Number QA-LC100D
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard Exporting Wooden Cases
Delivery Time 8 days
Payment Terms T/T, L/C, Western Union
Supply Ability 3800 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 100W Laser Beam Width 10-110 Mm
Laser Source Fiber Laser Device Service Online, Overseas Services
Scanner Speed 0-7000mm/min Weight 42 Kgs
High Light

100W Fiber Laser Cleaning Equipment

,

Double Scanner Head Laser Cleaning Equipment

,

Double Scanner Head Fiber Laser Cleaner
Leave a Message
Product Description

100W Fiber Laser Cleaning Machine with Double Scanner head Different Output Laser Beam



Description:



QA-LC100D Handheld Laser rust removal machine is a portable type, which equipped with a double scanner laser head.

The laser head is only 0.7kg, easy to carry and hold for long time cleaning job.



It can be designed according to customer requirements to develop a unique system. Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc

The machine can move freely on floor, as it has 4 wheels on the bottom, you can also take up by hand easily. Very convenient for transport.

The laser cleaning machine is a new generation of industrial metal surface cleaning laser system.

It adopts the advanced fiber laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Product features:

1. Phone App operation with bluetooth

2. Suitable for the removal of different materials ;

3. Free to wrok outside

4. Pollution-free;

5. Expansibility;

6. No damage to the base material;.

7. Easy to operate,
6. Small and light laser head

100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam 0



Specifications:



Model

QA-LC60

QA-LC100

QA-LC200

QA-LC500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

60W

100W

200W

500W

Fiber cable L

3 M

3 M

5 M

15M

Pulse Energy

1.5 mJ

1.5 mJ

10 mJ

50 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

50-500KHz

50-200KHz

20-50KHz

10-50KHz

Clean speed

≤5 M²/Hour

≤10 M²/Hour

≤15 M²/Hour

≤50 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Air cooling

Water cooling

Dimension

450*350*500

500*400*550

900*600*1100

900*800*1300

Weight

30Kg

40Kg

120Kg

300Kg

Beam width

10-110mm

10-110mm

10-170mm

10-1700mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

























































100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam 1

Application scope:

Metal workpiece laser derusting, paint removal, zinc and film remover, laser coating removal,

Industry: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc



Machine outlook with sample:

100W Fiber Laser Cleaning Machine With Double Scanner Head Different Output Laser Beam 2



FAQ:



1 Q: What is the warranty ?

A: 1 year warranty and offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union and paypal etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services.

4 Q: How is the quality of the machine?

A: Good quality with German technology.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, showing you how to operate the machine. The operation is very easy.
