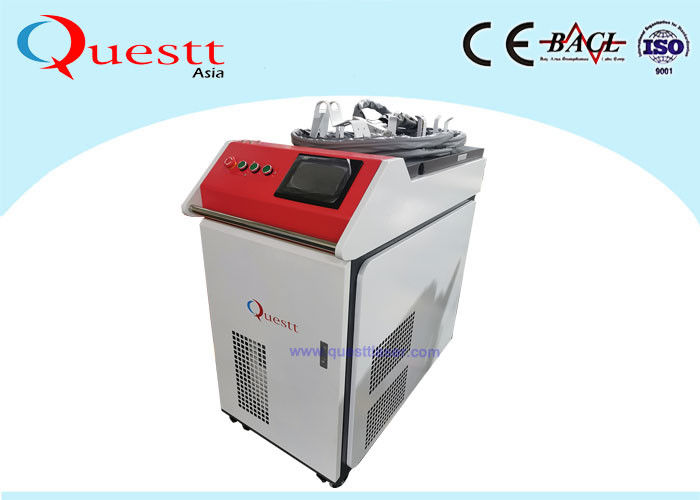

500W 1000W Handheld Fiber Laser Welding Machine For Metal

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Type | Fiber Laser | Wavelength | 1064nm |
---|---|---|---|
Laser Power | 500W/1000W | Welding Wire | 0.1-2mm |
Welding Frenquency | 1-50HZ | Power Supply | 380V 50HZ |
GW | 200kgs | ||
High Light | Handheld Fiber Laser Welding Machine,500W Fiber Laser Welding Machine,1000W Laser Welding Equipment |
Handheld Fiber Laser Welding Machine For Metal Power Range 500-3000W
Introduction
QA-FLW500H Fiber laser welding machine is an important aspect of laser process technology application.
It adopts a continous fiber laser source, with long lifetime up to 100,000 hours.
The fiber lasers are available for requalifying existing lamp-pumped processes at the application facilities and applications labs.
The laser welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.
Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
It is an ideal for continous welding, seam welding & drilling in the long pulse operation mode.
Features
1. Adpot integrated structure ,that's its control system,laser system and cooling system are all bulit-in and intergrated
2. Hand-held holding welding head is easily operated ,pciking and moving.
3. Using the fiber laser source,the laser beam quality is quite good,and its output power is stable which can assure the high welding performance.
4. The machine is with the safety control box ,which can contril the laser beam only comes out when welding starts.
5. Using special welding software .it has function of continuous laser beam ,and the adjustable output waveform,which can assure the precious and high-speed welding
6. It costs very low working consumption,Using laser machine one hour only consume 1-1.5 degree electrictiy,and weld all kinds of thin metal plates.
7. It can weld a wide range of metal ,includes the stainless steel,carbon steel,cooper,aluminum alloy,Zinc plated board.
8. Very nice welding performance.No deformation,small thermal effect.

Specification
Model |
QA-FL1000W |
QA-FL500W |
Average output power |
1000W |
500W |
Operation Mode |
CW/Modulate |
|
Max Modulation Frequency |
5KHz |
|
Output Power Stablility |
<3% |
|
Red Laser |
Yes |
|
Terminal Type |
QBH |
|
Beam Quality |
1.3M2 |
1M2 |
Polarization |
Random |
|
Delivery Cable Length |
20M |
|
Power Supply |
3 PH 380V five wire connect |
|
Control Mode |
RS232/AD |
|
Power Consumption |
4KW |
3KW |
Cooling |
Water Cooled |
|
Operation Temperature |
10-40 degree |
|
Max Depth of welding |
2mm |
1.5mm |
Machine Weight |
200Kg |
Application
Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries
Especially for gold and silver jewelry fill the hole, point weld lines, mosaic pieces and claw foot unit area, such as welding.
Welding sample
FAQ
1 Q: What is the warranty of the Handheld laser welding machine?
A: The warranty is 2 year.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
