Product Details
Place of Origin: Wuhan,China
Brand Name: Questt
Certification: CE ISO
Model Number: QA-FLW1000H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood cases
Delivery Time: 19 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9998 sets / year
Laser Type: |
CW Fiber Laser Source |
Wavelength: |
1064nm |
Laser Power: |
1000 Watts |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
200kgs |
Laser Type: |
CW Fiber Laser Source |
Wavelength: |
1064nm |
Laser Power: |
1000 Watts |
Welding Wire: |
0.1-2mm |
Welding Frenquency: |
1-50HZ |
Power Supply: |
220V 50HZ |
GW: |
200kgs |
Introduction

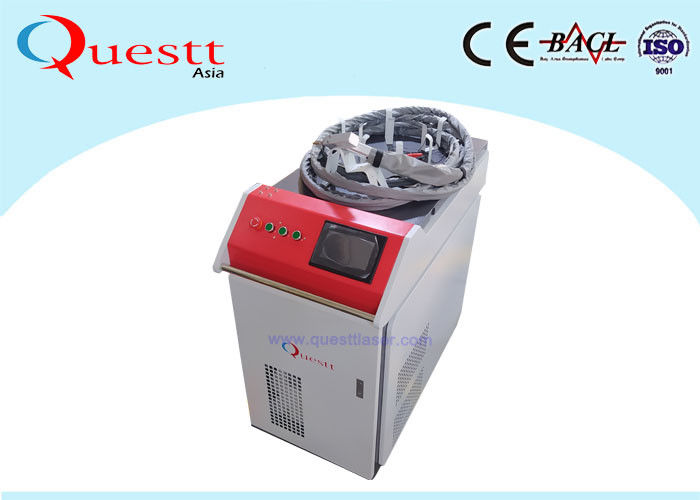

QA-FLW1000H Fiber laser welding machine adopts a continous fiber laser source, with long lifetime up to 100,000 hours.
The handheld fiber laser welding machine changes the traditional welding method, using a high-intensity laser beam as the heat source for welding, and is equipped with a hand-held welding head to replace the previous fixed optical path.
The laser head adopts water-cooled design, it won’t get over-heated during welding, small diameter, easy for hand-holding.
The laser welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.
Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
1. Adpot integrated structure;
2. Handheld laser head,easily operated ,pciking and moving.
3. Fiber laser source with high welding performance.
4. Control the laser beam only comes out when welding starts.
5. Welding seam does not need to be polished: After welding, smooth and no fish scales, beautiful and no scars, and fewer follow-up polishing procedures.
6. Welding without consumables: The handheld laser welding machine can easily complete the welding, reducing the material cost in production and processing.
7. With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.
Specification
Model | QA-FL1000W | QA-FL2000W |
Average output power | 1000W | 2000W |
Operation Mode | CW/Modulate | |
Max Modulation Frequency | 5KHz | |
Output Power Stablility | <3% | |
Red Laser | Yes | |
Terminal Type | QBH | |
Beam Quality | 1.3M2 | 1.5M2 |
Polarization | Random | |
Delivery Cable Length | 20M | |
Power Supply | 3 PH 380V five wire connect | |
Control Mode | RS232/AD | |
Power Consumption | 4KW | 6KW |
Cooling | Water Cooled | |
Operation Temperature | 10-40 degree | |
Max Depth of welding | 3mm | 5mm |
Machine Weight | 200Kg |
Application
Especially designed for metal welding.
Widely used in aviation, aerospace, sporting goods, medical equipment, aluminum denture, instrumentation, machining, automotive and other industries
FAQ
1 Q: What is the warranty of the 1000W Handheld laser welding machine?
A: The warranty is 2 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.
3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.
