2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal

Product Details

Place of Origin: Wuhan, China

Brand Name: QUESTT

Certification: ISO CE

Model Number: QA-LC100D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Exporting Wooden Cases

Delivery Time: 15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 3888sets per year

Get Best Price
Highlight:

JPT Fiber Laser Rust Remover

,

100W Laser Rust Remover

,

Dual Head Laser Rust Removal Machine

Laser Power:
100W
Certificate:
CE Certifice
Beam Width:
10-100mm
Laser Source:
Fiber Laser
Service:
Online And Overseas Service
Speed:
0-7000mm/min
Laser Power:
100W
Certificate:
CE Certifice
Beam Width:
10-100mm
Laser Source:
Fiber Laser
Service:
Online And Overseas Service
Speed:
0-7000mm/min
2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal

2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal



Description:

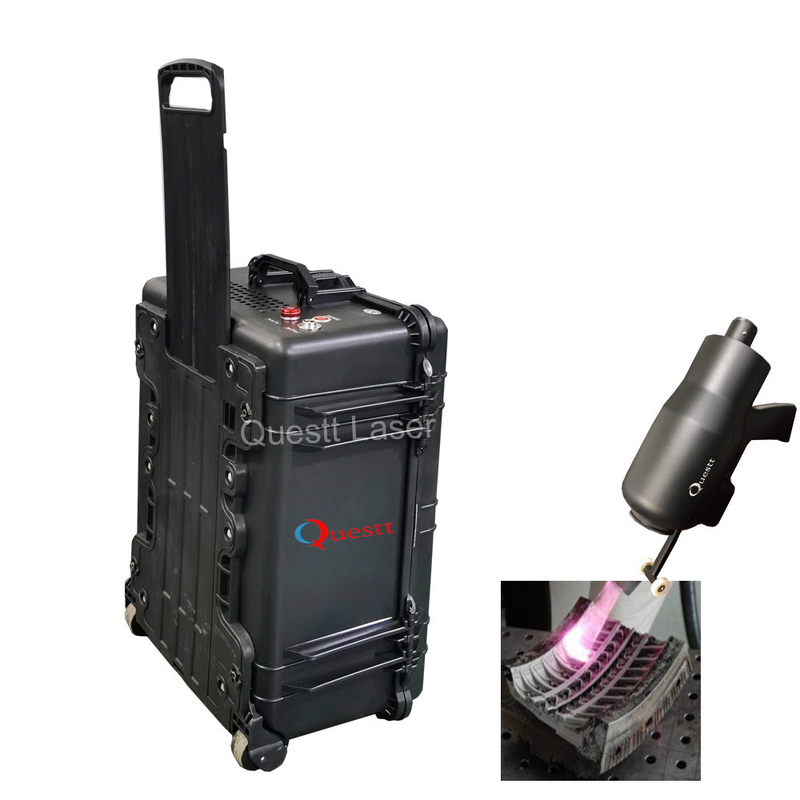

QA-LC100D is a 100W fiber laser cleaning machine for removing oil coating, painting coating, oxide coating, glue and rust.

This type laser rust removal machine has equipped with a dual scanner head, which can output different beam wave.

The laser system was connected with Phone bluetooth, very convenient for parameter settings.

You can make settings on your phone with our APP software. Very convenient to make setting! like laser power and laser beam width.

The laser derusting machine can be customized according to customer special demands.

The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 38kgs.

2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal 0

2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal 1



Product features:

1. App controller, connected with Phone Bluetooth

2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;

3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.

4. Clean or remove the surface paint layer quickly and cleanly;

5. Accurate cleaning and paint removal effect;

6. No damage to the base material;

7. Dual axis laser scanner head



Specifications:

Laser Cleaning Machine Rust Removal.pdf



Model

QA-LC60

QA-LC100D

QA-LC200

QA-LC500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

60W

100W

200W

500W

Fiber cable L

3 M

5 M

5 M

15M

Pulse Energy

1.5 mJ

1.5 mJ

10 mJ

50 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

1-5000KHz

1-4000KHz

1-3000KHz

10-50KHz

Clean speed

≤5 M²/Hour

10 M²/Hour

≤15 M²/Hour

≤50 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Air cooling

Water cooling

Dimension

450*350*500

500*400*550

900*600*1100

900*800*1300

Weight

30Kg

40Kg

120Kg

300Kg

Beam width

10-110mm

10-110mm

10-170mm

10-1700mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

























































Application scope:

Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy




Sample details:

2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal 2





FAQ



1 Q: What is the warranty of the laser cleaning machine ?

A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
