Product Details
Place of Origin: Wuhan, City
Brand Name: QUESTT
Certification: CE
Model Number: QA-LC100S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 12 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 2988 sets per year
Laser Types: |
Fiber |
Laser Power: |
100W |
Wavelength: |
1064 Nm |
Sevices: |
Wholelife Aftersale Service |
Certificate: |
CE |
Warranty: |
2 Years |
Scanning Width: |
10-100mm |
Cable Length: |
5 Meters |
Outlook: |
Mobile Case |
Keywords: |
Laser Rust Removal |
Laser Types: |
Fiber |
Laser Power: |
100W |
Wavelength: |
1064 Nm |
Sevices: |
Wholelife Aftersale Service |
Certificate: |
CE |
Warranty: |
2 Years |
Scanning Width: |
10-100mm |
Cable Length: |
5 Meters |
Outlook: |
Mobile Case |
Keywords: |
Laser Rust Removal |

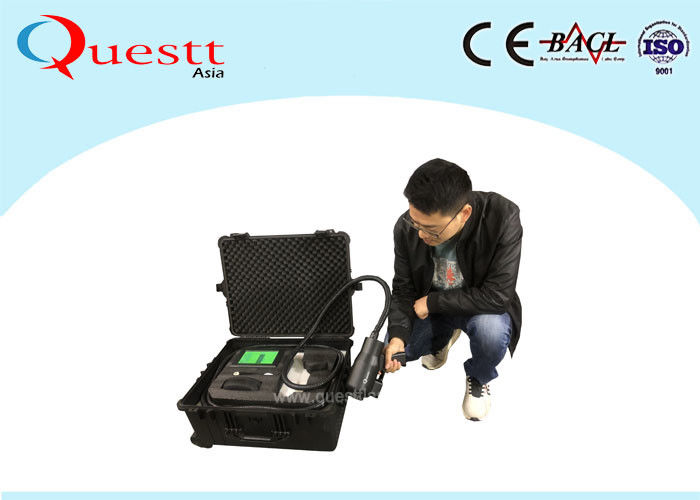

Mobile Case Handheld MOPA Laser Rust Removal Machine Wireless BlueTooth Connection
Description:
QA-LC100S mobile case Laser rust removal machine adopt a 100W mopa laser source, the laser head has two scanner motor, so the output laser beam shape have different choice, like waves, circles, squares
The laser system was connected with Phone bluetooth or handheld controller, very convenient for parameter settings.
We also add time counter on App, if for renting, you can see the laser working time and charge by hours.
The laser derusting machine can be customized according to customer special demands.
The outlook is the same as a travel case, this special design is good for outdoor cleaning job.
The total weight is only 38kgs, very easy to take along and move, good for demostration in other places.
You can make settings on your phone with our APP software. Very convenient to make setting! like laser power and laser beam width.
Characteristic:
1. Phone App operation with bluetooth or handheld controller
2. Suitable for the removal of different materials ;
3. Free to wrok outside
4. Pollution-free;
5. Expansibility;
6. No damage to the base material;.
Specifications:
| Model | QA-LC50S | QA-LC100S |
| Laser source | Fiber | Fiber |
| Laser Power | 50W | 100W |
| Fiber cable length | 1.5-3 M | 1.5-5 M |
| Laser Wavelength | 1060nm | 1064nm |
| Pulse Energy | 1 mJ | 1.5 mJ |
| Pulse frequency | 1-1000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling |
| Dimension | 500*300*650mm | 500*300*650 mm |
| Weight | 28Kg | 29Kg |
| Beam width | 10-70mm | 10-100mm |
| Optional | Manual/Auto | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ |
Application scope
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items
FAQ
1 Q: What is the warranty of the mobile case laser rust removal machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
