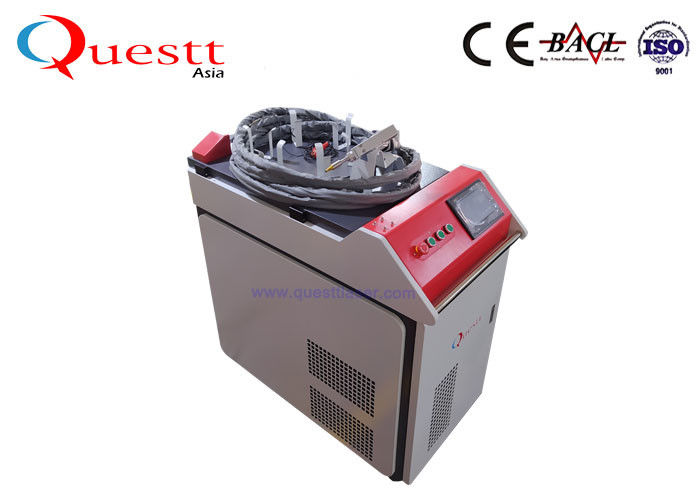

Best Price Handheld Laser Welding Machine 500w 1000w 1500w 2000w With Wire Feeder
The hand-held fiber laser welding machine changes the traditional welding method, using a high-intensity laser beam as the heat source for welding, and is equipped with a hand-held welding head to replace the previous fixed optical path. It has the advantages of simple operation, beautiful welding seam, fast welding speed and less consumables. Widely used in aviation, aerospace, sporting goods, jewelry, golf head, medical equipment, aluminum denture, instrumentation, electronics, machining, automotive and other industries, especially for gold and silver jewelry fill the hole, point weld lines, mosaic pieces and claw foot unit area.
1. Wide welding range: The handheld welding head is equipped with 5m-10M original optical fiber, which overcomes the limitation of workbench space, and can be welded outdoors and long-distance welding
2. Convenient and flexible to use: It equipped with movable pulleys, which is comfortable to hold, and can adjust the station at any time. It is free and flexible, and is suitable for various working environment scenarios.
3. Multiple welding methods: Welding at any angle can be realized: overlap welding, butt welding, vertical welding, flat fillet welding, internal fillet welding, external fillet welding, etc., and can weld various complex welded work pieces and large work pieces with irregular shapes.
4. Good welding effect: laser welding has a higher energy density and can achieve better welding results. The welding area has little heat influence, is not easy to deform, black, and has traces on the back. The welding depth is large, the melting is sufficient, and it is firm and reliable.
5. Welding seam does not need to be polished: After welding, smooth and no fish scales, beautiful and no scars, and fewer follow-up polishing procedures.
6. Welding without consumables: The handheld laser welding machine can easily complete the welding, reducing the material cost in production and processing.
7. With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.
|Average output power||1000W||1500W||2000W|
|Max Modulation Frequency||5KHz|
|Output Power Stability||±3%|
|Delivery Cable Length||20M|
|Power Supply||1 PH 220V five wire connect|
|Operation Temperature||10-40 degree|
|Max Depth of welding||2mm||3mm||4mm|
