Disordered Laser Texturing Machine For Roller 500W IPG Fiber Laser Source

Disordered Laser Texturing Machine For Roller 500W IPG Fiber Laser Source

  • High Light

    Disordered Laser Texturing Machine

    ,

    Roller Laser Texturing Machine 500W

    ,

    IPG Fiber Laser Machine

  • Output Power
    500w
  • Roll Diameter
    200 - 650 Mm
  • Frequency
    5-100 KHZ
  • Laser Type
    Fiber Laser Device
  • Service
    Oversea Service Offered
  • Warranty
    2 Years
  • Place of Origin
    China
  • Brand Name
    QUESTT
  • Certification
    ISO CE BACL
  • Model Number
    QA-LTE500
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    wooden boxes
  • Delivery Time
    20-48 days
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    580 sets per year

Disordered Laser Texturing Machine For Roller 500W IPG Fiber Laser Source

                   Disordered Laser Texturing Machine for Roller 500W IPG Fiber Laser Source



Overview

Questt QA-TE500S laser texturing machine system include fiber laser, control system and the domestic CNC controller. The fiber laser device is imported with high quality.

The laser texturing machine can realize roll roughen during the processing, make the roll surface disordered pits, which can meet a variety demand of surface topography.



Alternative to conventional shot peening roughen, edm roughen, other laser roughen orderly.

Laser disordered roughen technology for the world first Independent research and development, and has a number of technology patents.
At present, the system have choices based on laser and roughen head number, we have single head and double head according to the requests of customers.





Features

1. The system integration higher, control precision is higher and stability is reliable;
2. The operation is simple and efficient;
3. The equipment operation cost is low;
4. High processing quality, energy saving;
5. Laser roughen processing good uniformity, high repeatability, morphology, no pollution, low energy consumption, low noise

6. Lifetime is more than 100,000 hours without failure.

7. Texturing process can be set according to the requirements set.
8. Roll surface roughness range of 0.5 ~ 15.0μm.

9. Alternative to conventional shot peening roughen, edm roughen, other laser orderly Roughen.



Specification



Model QA-TE500S
Laser type Imported Fiber laser
Output laser power 20-500W
Laser frequency 5-100KHZ
CNC system Siemens or others
Roller diameter 200-650mm
Working length 0-5.3m
Texturing index Ra=0.5-15um
The axial line density 3-100 points/mm
The radial line density adjustable
Small hole diameter 50-90um
Small hole convex platform hardness HV>800
Small hole convex platform height 2-25um



Laser texturing head

The laser texturing device is composed of a large carriage, a small carriage, a focusing mirror and a detecting device. There are 2 sets of laser processing heads on the texturing head, 2 sets of manual focus adjustment devices, and each focus axis is equipped with a nitrogen side blowing device.

1 Large pallets Designed with a dedicated CNC roll texturing machine.

2 Small carriages Set on the large carriage, the transverse AC servomotors are driven laterally by two pairs of anti-backlash gears and transverse ball screws.

3 Focusing mirror and detecting device are all installed on the small carriage. The detection device is driven by the AC servo motor through the ball screw for linear motion.

4 Feed box: Designed with special CNC roll texturing machine.



Small pit surfaces of the laser Texturing steel sheets are not connected to each other, which is advantageous to oil and capture metal debris with stamping, prevent punching, to ensure the surface of the stamped parts, while reducing the amount of stamping oil. Deep punching performance is more excellent compared to processing techniques such as electric fire.




Application



Areas of application:
Steel, aluminum, titanium plate, etc.

Typical application:
Cold roller roughen processing, meet the temper mill, light machine, rolling mill, rolling mill roll after roughen the demand of various kinds of work roll.

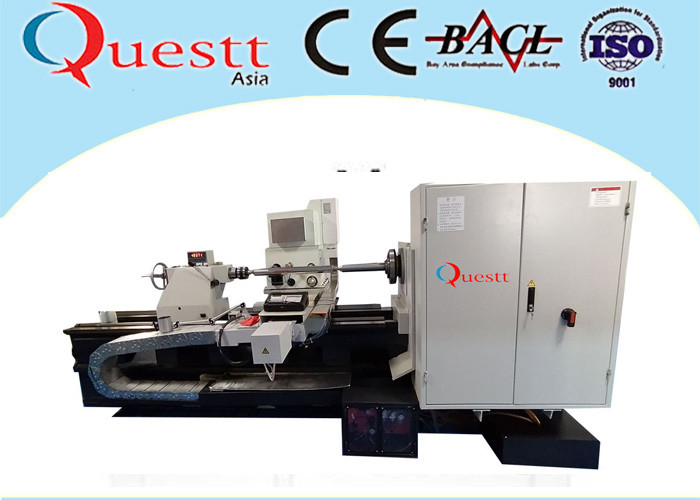

Machine overview

Disordered Laser Texturing Machine For Roller 500W IPG Fiber Laser Source



FAQ



1 Q: What is the warranty of the Roller Laser texturing Machine?

A: The warranty is 1 years, but we offer whole life after-sale service.

2 Q: What is your payment terms?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
