500W IPG Fiber Laser Texturing Machine System

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput Power | 500w | Roll Diameter | 200 - 650 Mm |
---|---|---|---|
Frequency | 5-100 KHZ | Laser Type | Fiber Laser Device |
Service | Oversea Service Offered | Warranty | 2 Years |
High Light | Fiber Laser Texturing Machine,500W Fiber Laser Texturing Machine,IPG Fiber Laser Texturing Machine |
500W IPG Fiber Laser Texturing Machine System
Overview
QA-TE500S laser texturing machine system include fiber laser, control system and the domestic CNC controller. The fiber laser device is imported with high quality from Germany IPG. Laser power is 500W.
The laser texturing machine can realize roll roughen during the processing, make the roll surface disordered pits, which can meet a variety demand of surface topography.
Laser disordered roughen technology for the world first Independent research and development, and has a number of technology patents.
At present, the system have choices based on laser and roughen head number, we have single head and double head according to the requests of customers.
Alternative to conventional shot peening roughen, edm roughen, other laser roughen orderly.
Features
1. The system integration higher, control precision is higher and stability reliable;
2. The operation is simple and efficient;
3. The equipment operation cost is low;
4. High processing quality, energy savd;
5. Laser roughen processing good uniformity, high repeatability, morphology, no pollution, low energy consumption, low noise
6. Lifetime is more than 100,000 hours without failure.
7. Texturing process can be set according to the requirements settings.
8. Roll surface roughness range of 0.05 ~ 15.0μm.
Specification
Model | QA-TE500S |
Laser type | Imported Fiber laser |
Output laser power | 20-500W |
Laser frequency | 5-100KHZ |
CNC system | Siemens or others |
Roller diameter | 200-650mm |
Working length | 0-5.3m |
Texturing index | Ra=0.5-15um |
The axial line density | 3-100 points/mm |
The radial line density | adjustable |
Small hole diameter | 50-90um |
Small hole convex platform hardness | HV>800 |
Small hole convex platform height | 2-25um |
Laser texturing head
The laser texturing device is composed of a large carriage, a small carriage, a focusing mirror and a detecting device. There are 2 sets of laser processing heads on the texturing head, 2 sets of manual focus adjustment devices, and each focus axis is equipped with a nitrogen side blowing device.
1 Large pallets Designed with a dedicated CNC roll texturing machine.
2 Small carriages Set on the large carriage, the transverse AC servomotors are driven laterally by two pairs of anti-backlash gears and transverse ball screws.
3 Focusing mirror and detecting device are all installed on the small carriage. The detection device is driven by the AC servo motor through the ball screw for linear motion.
4 Feed box: Designed with special CNC roll texturing machine.
Small pit surfaces of the laser Texturing steel sheets are not connected to each other, which is advantageous to oil and capture metal debris with stamping, prevent punching, to ensure the surface of the stamped parts, while reducing the amount of stamping oil. Deep punching performance is more excellent compared to processing techniques such as electric fire.
Application
Areas of application:
Steel, aluminum, titanium plate, etc.
Typical application:
Cold roller roughen processing, meet the temper mill, light machine, rolling mill, rolling mill roll after roughen the demand of various kinds of work roll.

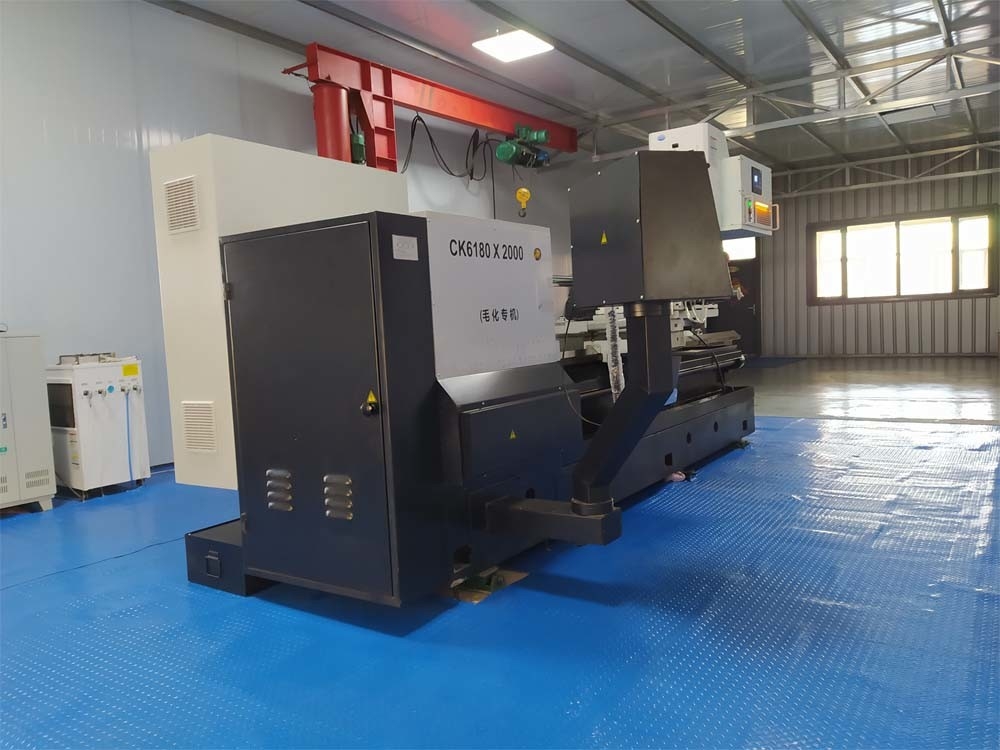

Machine overview
FAQ
1 Q: What is the warranty of Laser texturing Machine?
A: The warranty is 1 years, but we offer whole life after-sale service.
2 Q: What is your payment terms?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
