Mini Jewellery Co2 Fiber Laser Printer Metal Steel Marking Printing 30w 50w

Product Details

Place of Origin: China

Brand Name: Questt

Certification: CE ISO

Model Number: QA-Smart-20

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Plywood cases

Delivery Time: 15 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 1000 Sets/Year

Get Best Price
Highlight:

Co2 Fiber Laser Printer

,

Mini Steel Marking Fiber Laser Printer

,

Metal CO2 Laser Engraving Machine

Laser Power:
10W 20W 30W 50W
Laser Wavelength:
10.6um
Precision:
0.01mm
Cooling:
Air Cooling
Laser Type:
RF CO2 Laser
Service:
Overseas Service Available
Graphic Format:
AI, BMP, Dst, DXF, PLT, Jpg.tif
Key Selling Points::
High-accuracy
Core Components::
Pressure Vessel, Motor, Engine, PLC
Feature:
Air-cooled
Laser Power:
10W 20W 30W 50W
Laser Wavelength:
10.6um
Precision:
0.01mm
Cooling:
Air Cooling
Laser Type:
RF CO2 Laser
Service:
Overseas Service Available
Graphic Format:
AI, BMP, Dst, DXF, PLT, Jpg.tif
Key Selling Points::
High-accuracy
Core Components::
Pressure Vessel, Motor, Engine, PLC
Feature:
Air-cooled
Mini Jewellery Co2 Fiber Laser Printer Metal Steel Marking Printing 30w 50w

30w 50w Mini Small Jewellery Co2 Laser Cutting Fiber Lazer Printer Metal Steel Marking Printing Machine



Equipment discription



Equipment performance

Smart 30 CO2 Laser Marking Machine adopts imported radio frequency laser (metal sealed RF lase

r) and imported speedy galvo scanning system. All the fittings can meet the pipelining processing

continues dynamic on line with the proprietary working control software. It can realized automatic

edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, aut

omatically increased serial numbers. Marking has non-touched process, permanent effect, humaniz

ed operation, and stable running. The extensive equipment performance, competitive of working co

ntinuously for 24-hour made it meet the demand of massive on-line and off-line industrialized

production.



Construction

Ø 30W CO2 Laser from US(Coherence or Synrad US)

Ø LASER POWER SUPPLY

Ø High speed Galvo scanner from Germany

Ø High quality F-θ Lens

Ø D/A CARD and Control System

Ø Computer and marking software



Applicable fields

Baccy, pharmacy, food and beverage, alcohol, health protection electronics, art-gifts, leather, etc. Material: Paper plastic, film, silver paper, mood, glass, pvc, etc.

Optional configuration

USB port offline working




SPECIFICATION
Laser medium CO2
Light wavelength 10.6um
MAX output power 30W
Polarization Linear-vertical 50:1 extinction minimum
Cooling system Air cooled
Diameter of the smallest beam spot 0.1mm
Marking area 70*70mm/110*110mm/175*175mm/200*200mm
Dimension 800*250*250mm/500*200*450mm
Power supply 1 phase, 220V, 50/60Hz, 1KW
Components Controller, Laser System
Weight

30Kg



Application



Suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic, marble, jade, crystal, cloth etc. Wildly used in industries of arts &crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on leather, decorationand architectural model.





Sample

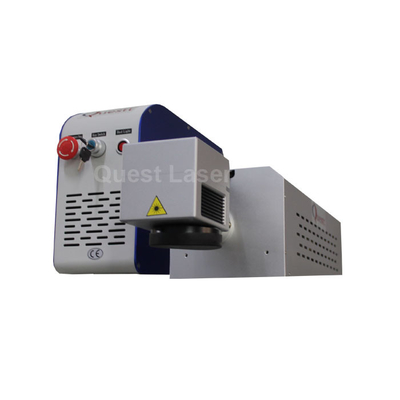

Mini Jewellery Co2 Fiber Laser Printer Metal Steel Marking Printing 30w 50w 0





FAQ



1. What is the warranty of this machine?

The machine warranty is one year, whole life after service.



2. Can your engineers offer service overseas?

Yes, our engineers can go to your factory and offer technical surpport.

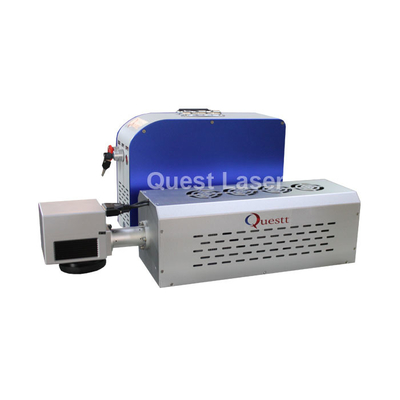

Machine outlook



Mini Jewellery Co2 Fiber Laser Printer Metal Steel Marking Printing 30w 50w 1
