Compact Flying Enclosed Fiber Uv Laser Marking Machine 3w 5w 10w 15w

Place of Origin China
Brand Name Questt
Certification CE ISO
Model Number QA-UV5SC
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Exporting standard plywood box
Delivery Time 5 - 21 days
Payment Terms T/T, Western Union, L/C
Supply Ability 2600 Sets/Year

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 5W Laser Type UV Laser
Wave Length 355nm Service Offer Oversea Service
Warranty 1 Year And Permanent Service Lens Imported
Marking Speed 0-7000mm/s Mode Of Operation Pulsed
High Light

Fiber Uv Laser Marking Machine 3w

,

Flying Enclosed Uv Laser Marking Machine

,

Compact Uv Laser Machine 355nm

Leave a Message
Product Description

Compact Design Flying Enclosed Portable 3w 5w 10w 15w Fiber Uv Laser Marking Machine



Descriptions



QUESTT QA-UV10SA UV laser  marking machine is a sealed box type UV laser marker that working for very precision products.



The whole working area is covered with a sealed boxes, thus, it is much better to protect you during working time, especially design for high level safety demands countries in Europe and American .



The UV laser device adopt diode pump laser as the pump source, end-pump fiber coupling, high power output, long use life time, easy to maintenance, internal heatsink air cooling, ensure stable laser output, can be long time continuous working.Clean lab package, TEM00 base mode output(M2<1.2),can achieve single and remote RS232 computer control, outside GATE control, outside TTL and PWM control.





Specification



Model No. QA-UV5SC    UV laser marking Machine
Laser type UV laser
The average output power 10W
Laser wavelength 355nm
Beam Quality(M2) 1
Frequency 20KHz-200KHz
Repetitive accuracy 0.005mm
Min Linear Width 0.01mm
Marking Depth 0.01-0.2mm
Max Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Standard marking 175*175mm
The optional scope of marking 70×70mm / 110x110mm / 175×175mm / 220x220mm
Consumed power <500W
File format PLT, DXF, AI, DST, BMP, JPG, TIF,JPEG
Power Supply 220V/50Hz/15A (110-120V Optional)
Cooling system Air cooling
Grosss weight 160 kgs





Features



1 high ratio photo translating system


2 high quality laser beams


3 Imported UV laser devices


4 low running cost


5 sealed working table, much safer


6 precison laser marking for slit products





Application



It is widely used in tobacco ,bio-pharmaceuticals,wine industry,food and beverage,health care products,electron industry,national defence industry,arts and crafts,clothing and appendix etc, and have rise trend recently.





UV laser device



Compact Flying Enclosed Fiber Uv Laser Marking Machine 3w 5w 10w 15w 0

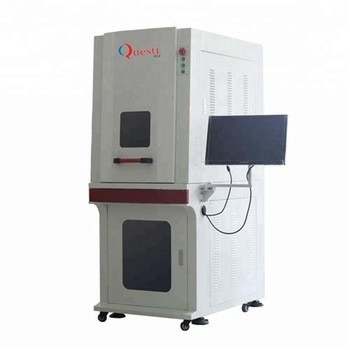

Machine outlook

Compact Flying Enclosed Fiber Uv Laser Marking Machine 3w 5w 10w 15w 1







Sample of ceramic

Compact Flying Enclosed Fiber Uv Laser Marking Machine 3w 5w 10w 15w 2

FAQ



1 Q: What is the warranty of the machine?

A: The warranty is 1-2 years.



2 Q: Are you a factory or trading company?

A: We are factory for 22 years.



3 Q: What is the service

A: We offer oversea service.



4 Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


5 Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. So please don’t worry, you will receive the parcel in good condition.


6 Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send you operation manual along with the machine.


7 Q: How can I do if the machine goes wrong?
A: Any problems come out, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
