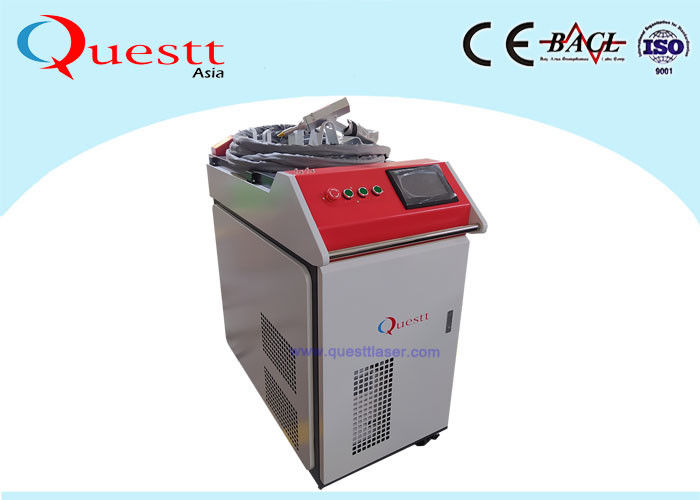

Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

  • High Light

    1500W Handheld Fiber Laser Welding Machine

    ,

    1080nm CW Fiber Laser Welding Machine

  • Laser Type
    CW Fiber Laser Source
  • Wavelength
    1080nm
  • Laser Power
    500-2000W
  • Welding Wire
    0.1-2mm
  • Welding Frenquency
    1-50HZ
  • Power Supply
    220V 50HZ
  • GW
    120kgs
  • Place of Origin
    Wuhan,China
  • Brand Name
    Questt
  • Certification
    CE ISO
  • Model Number
    QA-FLW1000H
  • Minimum Order Quantity
    1 set
  • Price
    Negotiable
  • Packaging Details
    Wooden cases
  • Delivery Time
    18 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    9999 sets / year

Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

Small Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

Introduction
QA-FLW1000H Fiber laser welding machine adopts a 1000W continous fiber laser source, cheap price but has long lifetime up to 100,000 hours.

For laser power, we can choose from 500W to up 3KW. We also have a new design, to replace with another head, you can also do cutting and cleaning jobs in the same machine.


The laser head adopts water-cooled design, it won’t get over-heated during welding, small diameter, easy for hand-holding.

We also add a wire feeding machine, for steady welding with big seams.

The laser welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.

Features

1.Could welding outdoors and long-distance

2. Convenient and flexible to use

3. Can weld various complex welded work pieces and large work pieces with irregular shapes.
4. Good welding effect
5. Welding seam does not need to be polished

6. Welding without consumables

7. With multiple safety alarms, the light is automatically locked after the workpiece is removed, and the safety is high.


Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal

Specification


Model

QA-FL1000H

QA-FL2000H

Average output power

1000W

2000W

Operation Mode

CW/Modulate

Max Modulation Frequency

5KHz

Output Power Stablility

<3%

Red Laser

Yes

Terminal Type

QBH

Beam Quality

1.3M2

1.5M2

Polarization

Random

Delivery Cable Length

20M

Power Supply

3 PH 380V five wire connect

Control Mode

RS232/AD

Power Consumption

4KW

6KW

Cooling

Water Cooled

Operation Temperature

10-40 degree

Max Depth of welding

3mm

5mm

Machine Weight

200Kg


Application
Especially designed for metal welding.
Widely used in aviation, aerospace, sporting goods, medical equipment, aluminum denture, instrumentation, machining, automotive and other industries


FAQ



1 Q: What is the warranty of the 1500W Handheld laser welding machine?
A: The warranty is 1 years.
2 Q: Are you a factory or trading company?
A: We are factory for 22 years.

3 Q: What is the service?
A: Engineer offer oversea service and we offer online service for small problems
4 Q: Can we customize as special needs?
A: Yes you can.
5 Q: What is the payment terms?
A: T/T, LC, etc.



Welding Samples:

Water Cooling Cabinet MAX 1500W Handheld Fiber Laser Welding Machine For Metal
