Mini 20W 30W 50W Fiber Laser Marker for metal gifts

Mini 20W 30W 50W Fiber Laser Marker for metal gifts

  • Certification
    CE ISO
  • Cnc Or Not
    Yes
  • Cooling Mode
    Air Cooling
  • Marking Speed
    0-7000mm/s
  • Warranty
    1 Year
  • Laser Source
    Raycus
  • Applicable Material
    Metal Plastic,Aluminum,Cooper,iron,Stainless Steel
  • Keywords
    Fiber Laser Marking Machine Price
  • Working Accuracy
    0.01mm
  • Control Software
    JCZ Software
  • Laser Wavelength
    1064nm
  • Place of Origin
    WUHAN
  • Brand Name
    QUESTT
  • Certification
    CE ISO
  • Model Number
    EM SMART
  • Minimum Order Quantity
    1
  • Packaging Details
    Carton box
  • Delivery Time
    5-8 Working days
  • Payment Terms
    T/T
  • Supply Ability
    2000 sets per year

Mini 20W 30W 50W Fiber Laser Marker for metal gifts

Mini 20W 30W 50W Fiber Laser Marker for metal gifts

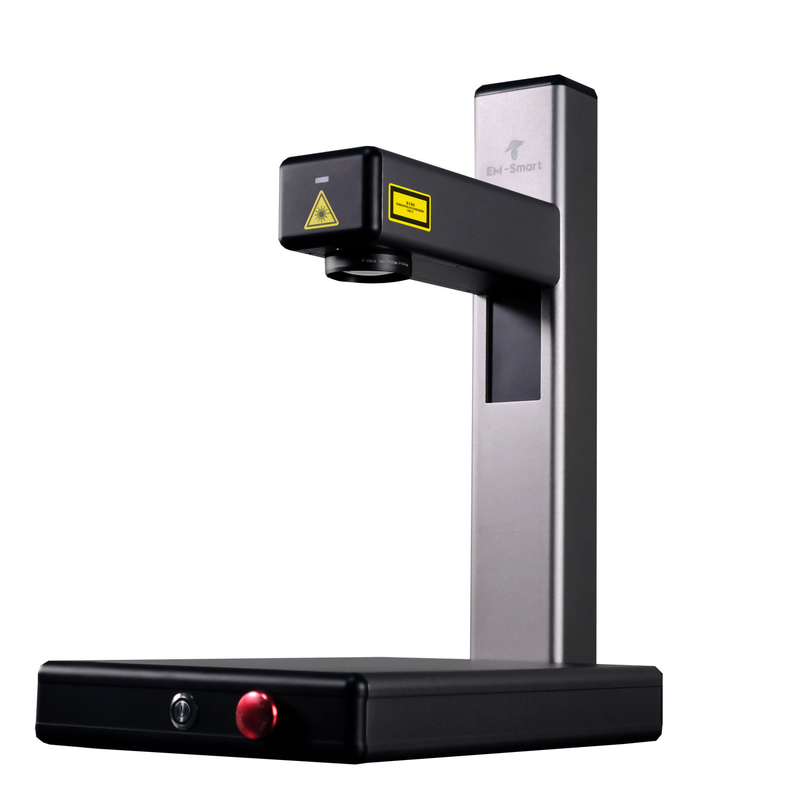

EM-Smart20 is a mini type fiber laser marker machine which adopt a 20W fiber laser source.

Small size,easy to take along for outdoor marking service like in park.



FEATURES

* Easily Carried - Net weight 10kg
* Compact Design - Dimension 505mm x 260mm x 440mm
* Plug and Run - Uni-body design, installation-free
* Safety - Fiber wire inside integrated, Protection cover optional
* Artwork Appearance - Deep customization with Raycus, JCZ and Sino-Galvo to be small enough in the body
* CE passed
Mini 20W 30W 50W Fiber Laser Marker for metal gifts 0
Machine details

Mini 20W 30W 50W Fiber Laser Marker for metal gifts 1
Mini 20W 30W 50W Fiber Laser Marker for metal gifts 2
Mini 20W 30W 50W Fiber Laser Marker for metal gifts 3
Advantages
Mini 20W 30W 50W Fiber Laser Marker for metal gifts 4
Mini 20W 30W 50W Fiber Laser Marker for metal gifts 5
Parameters

Model
EM-Smart
Laser Type
20watt Fiber Laser (Raycus)
Work Area
110mm * 110mm
Laser Wavelength
1064nm
Marking Speed
≤7000mm/s
Repeat Accuracy
±0.01mm
Minimum Character
0.1mm
Frequency Range
30-60kHz
Operation Temperature
15℃ - 35℃
Cooling Method
Air Cooling Integrated with Fiber Laser Source
Power Supply
AC 110v - 240v, 50Hz / 60Hz
Power Consumption
≤120W
PC Connection
USB Wire
Software
EZcad 2 from Beijing JCZ
Software Language
English / Japanese / Korean / Chinese
Power Outlet Type
US, UK, EU, CN, etc.
Machine Color
White / Blue / Dark Green / Dark Gray
Machine Net Weight
10KG
Machine Dimension
260mm(L) * 440mm(W) * 505mm(H)



Samples



Suitable Materials
* Stainless steel
* Steel and hard metals
* Aluminum and anodized aluminum
* Precious metals
* Brass
* Copper
* Titanium and titanium alloys

* Poly amide (PA)
* Polycarbonate (PC)
* Acrylonitrile butadiene styrene copolymer (ABS)



Mini 20W 30W 50W Fiber Laser Marker for metal gifts 6



Package

Mini 20W 30W 50W Fiber Laser Marker for metal gifts 7



FAQ



1 Q: Warranty of the laser marking machine?

A: The warranty is 2 year, but we offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union, etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .

4 Q: How is the quality of the machine?

A: Germany high technoloy with good quality.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, show you how to operate the machine.

We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
